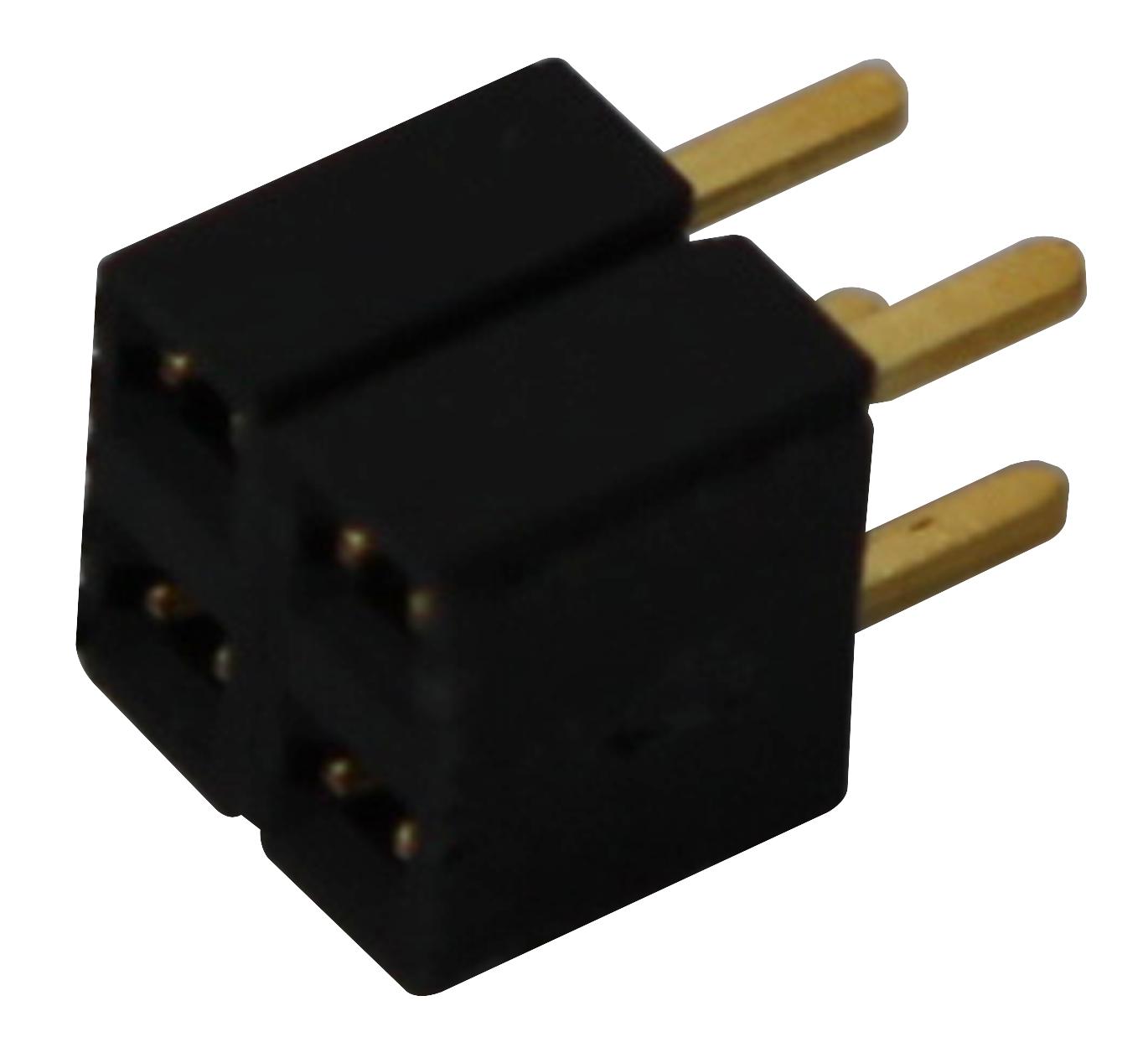

SAMTEC SLW10201GD Connector Module
The SLW series is a high-performance, versatile connector designed for reliable electrical connections in various applications. Made with phosphor bronze contacts plated with gold or tin over nickel, it ensures excellent conductivity and corrosion resistance. The insulator is crafted from black G.F. Polyester, supporting a current rating of 5.2A per pin and 8A per row, with a voltage rating of 250V AC. Operating temperatures range from -55°C to +125°C, making it suitable for demanding environments. The connector's compact design with various lengths enhances flexibility for different assemblies, ensuring robust and secure connections.
SAMTEC SLW10201GD Connector Module Specifications:
- Contact Material: Phosphor bronze
- Plating: Au or Sn over 50u" (1.27 um) Ni
- Insulator Material: Black G.F. Polyester
- Current Rating: 5.2A per pin, 8A per row
- Voltage Rating: 250V AC (SLW), 400VAC (CES)
- Operating Temperature Range: -55°C to +125°C with gold, -55°C to +105°C with tin
- Insertion Force: 2.22 N (80 oz), Withdrawal Force: 1.67 N (60 oz)
- Max dimensions: Length varies, typical lengths 2.54 mm (0.100 in) to 4.95 mm (0.195 in)
- Certifications: OHS compliant, lead-free, wave solderable
- Environmental ratings: RoHS compliant, withstands high-temperature environments
Buy the Buy Samtec Connector Part Number SLW10201GD Online
Enhance your electronic assemblies with this high-quality connector featuring gold or tin plating over phosphor bronze contacts, supporting currents up to 8A per row and voltage ratings up to 250V AC. Its black G.F. Polyester insulator ensures durability and stability across a temperature range from -55°C to +125°C. Designed for easy installation with minimal insertion and withdrawal forces, this connector guarantees secure, high-performance connections for demanding industrial, consumer, or embedded applications. Buy online today for reliable, efficient connectivity.
Buy Samtec SLW10201GD now and experience unmatched reliability and performance in high-density electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC SLW10201GD?
You can click on the BUY or RFQ button to purchase SLW10201GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SLW10201GD?
You can download the SLW10201GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SLW10201GD?
SAMTEC
