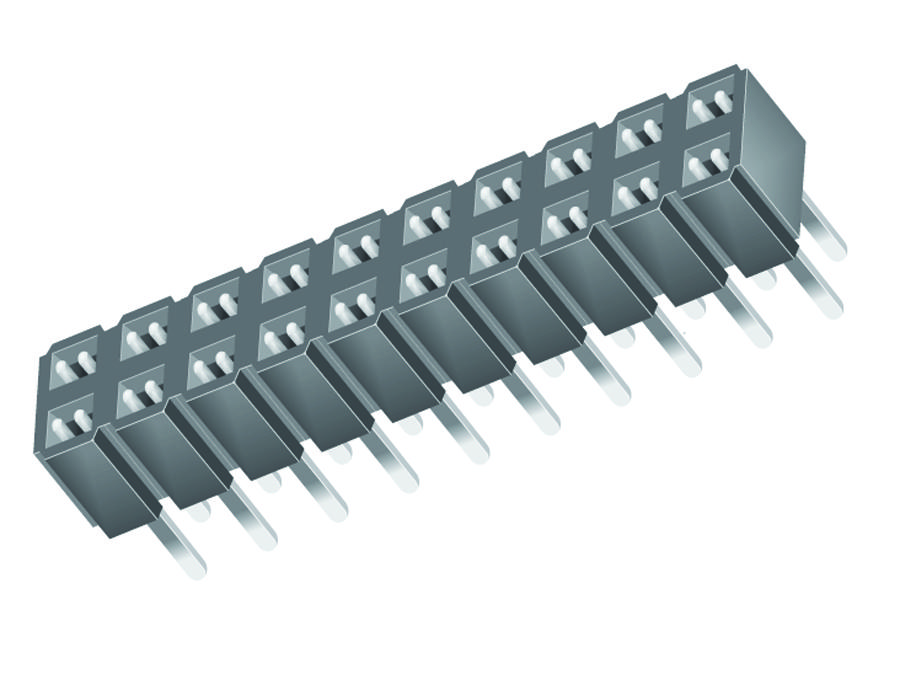

SAMTEC SLW10501SD Low Profile Socket Strip
SAMTEC's SLW series low-profile socket strips offer a compact and reliable connection solution. These strips are designed to mate with a range of connectors, including TLW and TSW, making them suitable for diverse applications in electronics and instrumentation. Available with gold or tin plating options, and various row configurations, the SLW series provides flexibility for designers seeking space-saving and high-performance interconnects. Ensure secure and efficient power distribution with a current rating of up to 5.5A per pin.
SAMTEC SLW10501SD Low Profile Socket Strip Specifications:
- Material: Black G.F. Polyester
- Contact_Material: Phosphor Bronze
- Plating_Options: Gold flash, 10µ” Gold, 50µ” Ni, Matte Tin
- Current_Rating_SLW: 5.2 A per pin (2 pins powered)
- Current_Rating_CES: 5.5 A per pin (2 pins powered)
- Voltage_Rating_SLW: 406 VAC
- Voltage_Rating_CES: 400 VAC
- Operating_Temperature_Gold: -55 °C to +125 °C
- Operating_Temperature_Tin: -55 °C to +105 °C
- Insertion_Depth_SLW: 0.085" to 0.115"
- Insertion_Depth_CES: 0.103" to 0.160"
- RoHS_Compliance: Yes
- Lead_Free_Solderable: No, Lead Wave only
- Mates_With: TLW, TSW, MTLW, MTSW, HW, EW, ZW, HTSW, SLW
Buy the SLW-105-01-S-D SAMTEC Low Profile Socket Strip | myMectronic
Securely purchase the SLW-105-01-S-D connector online and ensure reliable performance for your application.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC SLW10501SD?
You can click on the BUY or RFQ button to purchase SLW10501SD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SLW10501SD?
You can download the SLW10501SD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SLW10501SD?
SAMTEC
