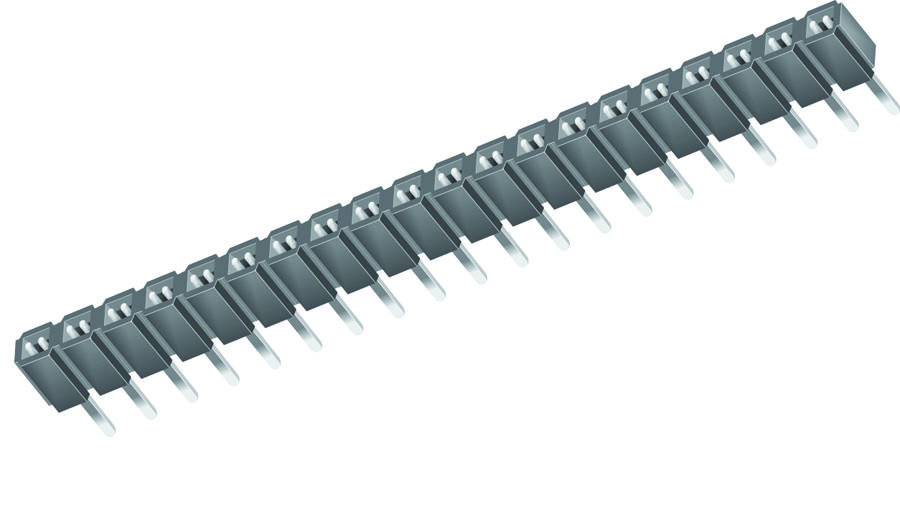

SAMTEC SLW11001TS Low Profile Socket Strip
The SAMTEC SLW series socket strips are low-profile connectors designed for applications requiring compact and reliable connections. These strips mate with a range of SAMTEC connectors, including TLW, TSW, and MTLW, providing flexibility in system design. Constructed with phosphor bronze contacts and a black G.F. Polyester insulator, the SLW series offers excellent electrical and mechanical performance. They are RoHS compliant and suitable for operating temperatures ranging from -55°C to +125°C (with gold plating) or -55°C to +105°C (with tin plating). Available with various plating options, including gold flash and matte tin, to meet specific application requirements.
SAMTEC SLW11001TS Low Profile Socket Strip Specifications:
- Material: Phosphor Bronze, G.F. Polyester
- Contact Plating: Gold flash, Matte Tin
- Current Rating: 5.2 A per pin (SLW/TSW), 5.5 A per pin (CES)
- Voltage Rating: 406 VAC (SLW), 400 VAC (CES)
- Operating Temperature: -55 °C to +125 °C (Gold), -55 °C to +105 °C (Tin)
- Insertion Depth: 0.085" to 0.115" (SLW), 0.103" to 0.160" (CES)
- RoHS Compliant: Yes
- Lead-Free Solderable: No (Lead Wave only)
Buy the SLW-110-01-T-S SAMTEC Low Profile Socket Strip | myMectronic
Securely purchase the SAMTEC SLW-110-01-T-S online and ensure reliable component sourcing for your projects.
Buy Now
Frequently Asked Questions
Where can I buy SAMTEC SLW11001TS?
You can click on the BUY or RFQ button to purchase SLW11001TS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SLW11001TS?
You can download the SLW11001TS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SLW11001TS?
SAMTEC
