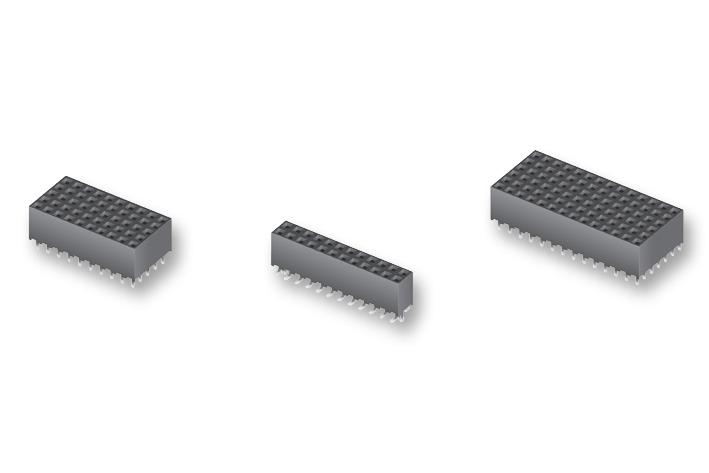

SAMTEC SQW12001LDVS High-Density PCB Socket
The SQW12001LDVS is a high-quality, RoHS-compliant socket with a 2.00 mm pitch, designed for versatile PCB connections. Crafted with black liquid crystal polymer insulators and phosphor bronze contacts plated with Sn or Au over Ni, it offers excellent electrical and thermal performance. This socket supports up to 3.8 A per pin, with a voltage rating of 500 VAC when mated. It features an insertion depth of approximately 4.0 mm, a max cycle count of 100, and is suitable for surface mount or through-hole mounting. Its robust design ensures durability and reliable connectivity in electronic assemblies.
SAMTEC SQW12001LDVS High-Density PCB Socket Specifications:
- Pitch: 2.00 mm (.0787 inch)
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50u" (1.27 um) Ni
- Current Rating: 3.8 A per pin
- Voltage Rating: 500 VAC
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 10 mΩ
- Insertion Depth: 4.00 mm (0.158 inch)
- Wipe: 0.38 mm (0.015 inch)
- Insertion Force: 1.8 oz (0.50 N) average
- Withdrawal Force: 1.0 oz (0.28 N) average
- Max Cycles: 100 with 10u" Au plating
- RoHS Compliant: Yes
- Mounting: Surface mount or through-hole
- Compatibility: Supports 4 to 6 rows, various configurations
- Certification: Recognized under industry standards
