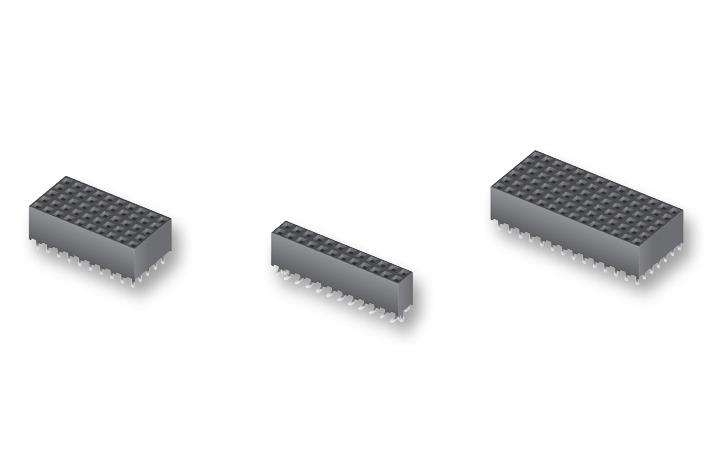

SAMTEC SQW12101LDVS High-Density PCB Connector
The SQW12101LDVS is a versatile electrical connector designed for PCB applications, featuring black liquid crystal polymer insulation and phosphor bronze contacts. It offers current ratings up to 3.8 A per pin and voltage ratings of 500 VAC when mated with TMM or TMMH series. Operating temperature ranges from -55°C to +125°C, with a contact resistance of 10 mΩ. The connector supports 1.8 oz insertion force, 1 oz withdrawal force, and up to 100 mating cycles with gold plating options, complying with RoHS standards. Suitable for high-density connections in electronic assemblies.
SAMTEC SQW12101LDVS High-Density PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50u" Ni
- Current Rating: 3.8 A per pin (1 pin powered per row)
- Voltage Rating: 500 VAC mated with TMM or TMMH
- Operating Temperature Range: -55°C to +125°C
- Contact Resistance: 10 mΩ
- Insertion Depth: 0.103" to 0.198" (2.62 mm to 5.03 mm)
- Insertion Force: 1.8 oz (0.50 N) avg.
- Withdrawal Force: 1.0 oz (0.28 N) avg.
- Max Cycles: 100 with 10 u" Au
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- Lead Coplanarity: 0.006" (0.15 mm)
Buy the Samtec Series SQW: High-Density PCB Connector with Liquid Crystal Polymer Insulation - SQW12101LDVS
Purchase the Samtec Series SQW SQW12101LDVS online today for dependable high-performance PCB connections. Featuring liquid crystal polymer insulation and phosphor bronze contacts, this connector supports up to 3.8 A per pin and 500 VAC voltage ratings. It operates efficiently within -55°C to +125°C temperature range, with a contact resistance of 10 mΩ. RoHS compliant and lead-free, it enables easy soldering and long-term durability, making it ideal for complex electronic assemblies and high-density applications. Buy now to enhance your project’s reliability and performance.
Order your Samtec Series SQW SQW12101LDVS connector today and ensure reliable, high-current connections for your electronic projects.
