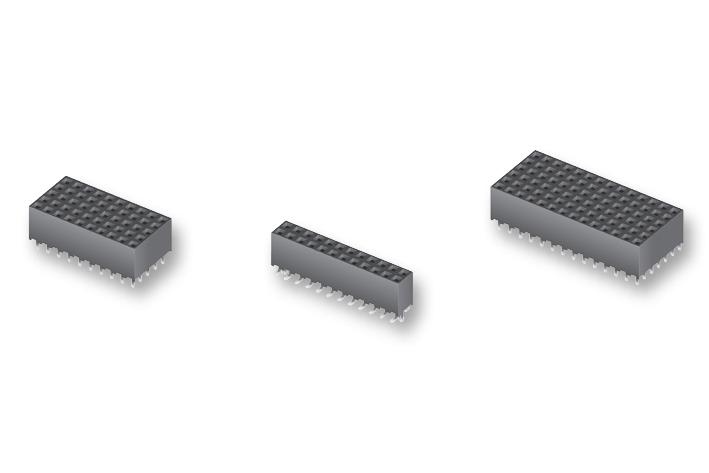

SAMTEC SQW12401LD Electrical Connector
The SQW12401LD is a high-performance low-profile rectangular electrical connector featuring a black liquid crystal polymer insulator and phosphor bronze contacts with Sn or Au plating over Ni. It supports a current rating of 3.8 A per pin and a voltage rating of 500 VAC when mated with TMM or TMMH modules. Designed for reliable connections, it has an operating temperature range from -55°C to +125°C, contact resistance of 10 mΩ, and features a contact insertion depth between 0.103 and 0.198 inches. This RoHS compliant connector is suitable for applications requiring high cycle reliability and minimal insertion force.
SAMTEC SQW12401LD Electrical Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50u" Ni
- Current Rating: 3.8 A per pin
- Voltage Rating: 500 VAC
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 10 mΩ
- Insertion Depth: 0.103" to 0.198"
- Wipe: 0.015"
- Insertion Force: 1.8 oz (0.50 N)
- Withdrawal Force: 1.0 oz (0.28 N)
- Max Cycles: 100
- RoHS Compliant: Yes
- Processing: Lead-Free Soldérable
- Lead Coplanarity: 0.006"
- Mounting Options: Surface Mount or Through-hole
- Number of Positions: 4 to 6 rows, various options
