SAMTEC SS104T2N Connector Module
This high-quality connector features brass contacts with gold or tin plating, suitable for applications requiring reliable electrical connections. Operates within -55°C to +125°C, with a contact resistance max of 10 mΩ. Available in multiple styles and pin configurations, it provides low insertion and withdrawal forces for easy assembly. RoHS compliant and lead-free solderable via wave or reflow methods. Designed with insulator materials like black G.F polyester and M11 liquid crystal polymer, ensuring durability, heat resistance, and excellent electrical performance. Ideal for automation, electronic testing, and manufacturing systems.
SAMTEC SS104T2N Connector Module Specifications:
- Contact Material: Brass
- Plating: Au over 50p" Ni or Sn over 50" Ni
- Operating Temperature Range: -55°C to +125°C
- Contact Resistance: Max 10 mΩ
- Current Rating: 1A
- Insulator Material: Black G.F Polyester and Liquid Crystal Polymer
- Insertion Force: Standard 9oz (2.50N) avg., Low 2.507oz (0.70N) avg.
- Withdrawal Force: Standard 2.50z (0.70N) avg., Low 2.00z (0.56N) avg.
- RoHS Compliant: Yes
- Lead-Free Solderable: Wave, Reflow (all Au)
- Max Processing Temp: 230°C for 60s or 260°C for 20s
- Pin & Style Options: Multiple, including styles -5A & -03 thru -08, with various pin counts
- Insertion Depth: varies by style, from 0.095" (2.41mm) to 0.157" (3.99mm)
- Standards: ROHS, UL Listed, CSA Certified
- Application: Suitable for low voltage signal connections, automation, electronic testing, and manufacturing

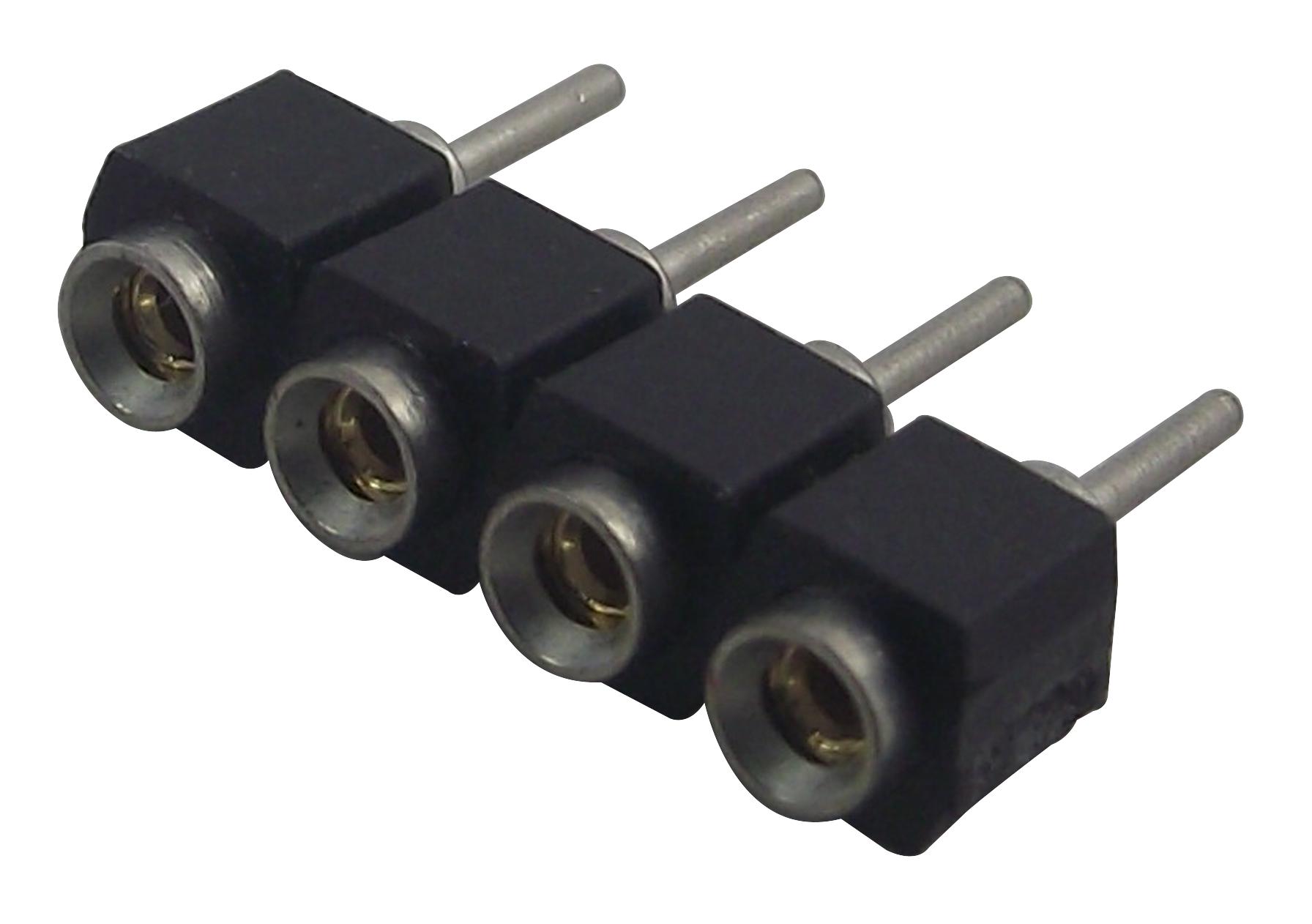

Buy the Buy Samtec SS104T2N Part Number SS104T2N Online
Discover the Samtec SS104T2N connector module, designed for robust electrical connections in automation and electronic systems. Featuring brass contacts with gold or tin plating, it operates reliably from -55°C to +125°C. Its durable insulators are made from black G.F polyester and liquid crystal polymer, ensuring heat resistance and electrical stability. With low insertion and withdrawal forces, this connector simplifies assembly and ensures secure connections. RoHS compliant and lead-free, it is suitable for various manufacturing and testing applications in electronics industries. Purchase online today for quality and durability.
Get Samtec SS104T2N today—built for precision, with reliable contact resistance and heat-resistant insulators for long-lasting electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC SS104T2N?
You can click on the BUY or RFQ button to purchase SS104T2N from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SS104T2N?
You can download the SS104T2N datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SS104T2N?
SAMTEC
