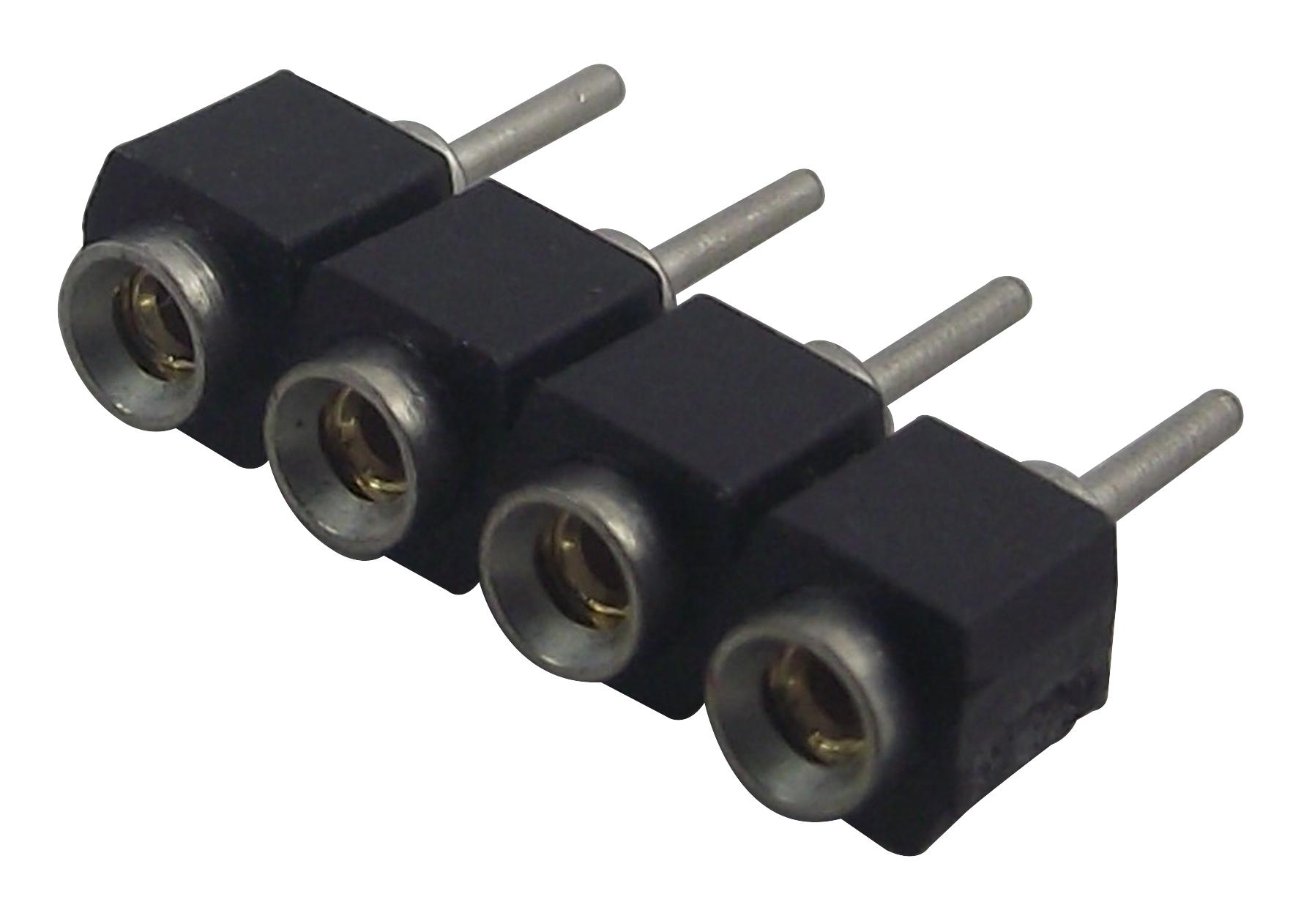

SAMTEC SS130T2N Socket connector
This is a high-quality socket connector designed for reliable electronic connections. Made from durable Black G.F Polyester insulator and brass contacts, it features gold and tin plating options for enhanced conductivity. With a current rating of 1A, it supports operating temperatures from -55°C to +125°C. The socket offers different insertion and withdrawal forces, ensuring ease of use and secure connection. RoHS compliant and wave solderable, it is suitable for various electronic applications requiring durable, high-performance interconnects.
SAMTEC SS130T2N Socket connector Specifications:
- Insulator Material: Black G.F Polyester
- Contact Material: Brass
- Plating: Au over 50p'' Ni or Sn over 50p'' Ni
- Current Rating: 1A
- Temp Range: -55°C to +125°C
- Contact Resistance: 10 mΩ max
- Insertion Force: Standard= 9oz (2.50N) avg., 16oz (4.45N) max; Low Insertion Force= 2.50z (0.70N) avg., 5.50z (1.53N) max
- Withdrawal Force: Standard= 2.50z (0.70N) avg., 1.50z (0.42N) min; Low Insertion Force= 2.00z (0.56N) avg., 0.350z (0.10N) min
- Insertion Depth: vary with style, approximately 0.095
- Dimensions: vary with style, typical ins. thickness 0.030 inches, diameter 0.070 inches, operating depth varies accordingly
Buy the Samtec Series SS Socket: SS130T2N
Secure your electronic projects with the Samtec SS130T2N socket connector, featuring brass contacts, gold and tin plating options, RoHS compliance, operating from -55°C to +125°C, and easy wave solderability. Designed for reliable durability and high current handling, this socket ensures optimal electrical conductivity and secure connections. Its versatile insertion depths support various application styles, making it suitable for manufacturing, industrial equipment, automation, and electronic assembly needs. Purchase online today to ensure fast delivery and expert support for your critical projects.
Buy Samtec SS130T2N socket connector now and experience unmatched reliability and high-performance electronic connections with durable brass contacts.
Frequently Asked Questions
Where can I buy SAMTEC SS130T2N?
You can click on the BUY or RFQ button to purchase SS130T2N from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SS130T2N?
You can download the SS130T2N datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SS130T2N?
SAMTEC
