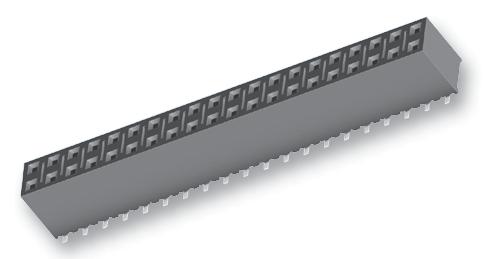

SAMTEC SSM108LMDV High-density PCB socket
The product is a high-performance insulation socket designed for precise PCB connections in industrial electronics. Constructed from black liquid crystal polymer with phosphor bronze contacts, it features a gold or tin plating option. Operating temperature ranges from -55°C to +125°C, with a current rating of 5.2A per pin and voltage ratings up to 572V. The socket supports multiple positions and is available in various configurations, including pass-through, with a typical insertion depth of approximately 4.34 mm. This durable, coplanar connector is suitable for high-density, polarized applications and ensures reliable electrical performance in demanding environments.
SAMTEC SSM108LMDV High-density PCB socket Specifications:
- Insulator Material: Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating Options: Gold or Tin
- Current Rating: 5.2A per pin
- Voltage Rating: 572V
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: approximately 4.34 mm
- Number of Positions: Up to 29 positions
- Coplanarity Tolerance: less than 0.15 mm for up to 28 positions, 0.20 mm for more than 27 positions
- Supported Applications: High-density PCB connections, industrial electronics, polarized connectors
- Solderability: Yes
- Certifications: See www.samtec.com/quality
Buy the Samtec SSM108L – Reliable PCB Connector for Industrial Applications
Enhance your electronic assemblies with the high-density PCB socket designed for industrial-grade performance. Featuring liquid crystal polymer insulation and phosphor bronze contacts with gold or tin plating, it offers excellent thermal stability, high current capacity, and voltage rating up to 572V. Supports polarized, pass-through, and high-density configurations, ensuring secure and reliable connections. Suitable for demanding environments, this durable connector ensures optimal electrical performance, easy installation, and compliance with industry standards. Order online today for fast delivery and trusted quality.
Order your Samtec SSM108L series high-density socket today and give your projects the dependable electrical connection they deserve.
Frequently Asked Questions
Where can I buy SAMTEC SSM108LMDV?
You can click on the BUY or RFQ button to purchase SSM108LMDV from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSM108LMDV?
You can download the SSM108LMDV datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSM108LMDV?
SAMTEC
