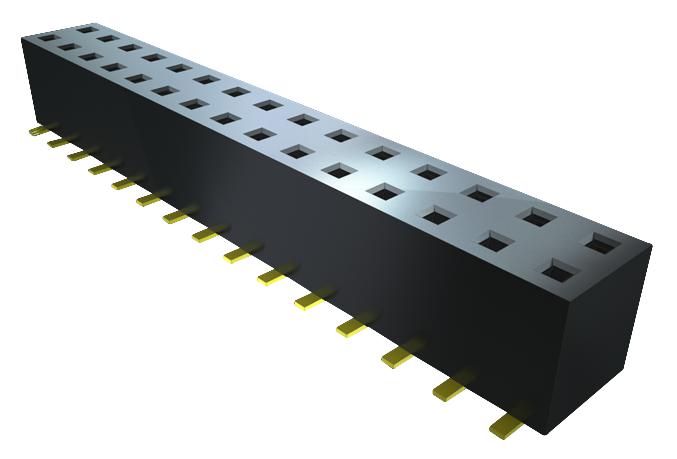

SAMTEC TLE10301GDVA High-Density Pass-Through Connector
The TLE10301GDVA is a high-performance pass-through connector designed for reliable PCB connections in electronic assemblies. Featuring liquid crystal polymer insulation and phosphor bronze contacts plated with gold over nickel, it ensures excellent electrical conductivity and corrosion resistance. With a current rating of 3.2A per pin, operating temperature range from -55°C to +125°C, and customizable insertion depths, it is ideal for compact, high-density applications requiring durability and precision. Suitable for lead-free and RoHS-compliant manufacturing processes, it supports SMT lead coplanarity and optional pick-and-place pads for efficient automated assembly.
SAMTEC TLE10301GDVA High-Density Pass-Through Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au over 50p" Ni (1.27 μm)
- Current Rating: 3.2 A per pin
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 0.082" to 0.172" (2.08 mm to 4.37 mm)
- Insertion Force: 2.75 oz (0.76 N) average
- Withdrawal Force: 0.80 oz (0.22 N) average
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- SMT Lead Coplanarity: Max 0.004" (0.10 mm), Max 0.006" (0.15 mm)
- Suitable for pass-through applications with optional pick-and-place pads
- Design supports various lengths, styles, and options, some non-standard
Buy the Buy Samtec TLE10301GDVA Part Number TLE10301GDVA Online
Order the Samtec TLE10301GDVA connector online today and enjoy quick, secure delivery. This high-performance pass-through connector features liquid crystal polymer insulation and gold-plated phosphor bronze contacts for durable, corrosion-resistant PCB connections. Rated for 3.2A per pin and capable of operating in temperatures from -55°C to +125°C, it’s ideal for compact and demanding electronic assemblies. Its RoHS compliance and SMT lead coplanarity simplify automated manufacturing, making it an excellent choice for professional electronics engineers and manufacturers seeking high reliability.
Buy Samtec TLE10301GDVA now and experience unmatched reliability and performance in high-density electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC TLE10301GDVA?
You can click on the BUY or RFQ button to purchase TLE10301GDVA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TLE10301GDVA?
You can download the TLE10301GDVA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TLE10301GDVA?
SAMTEC
