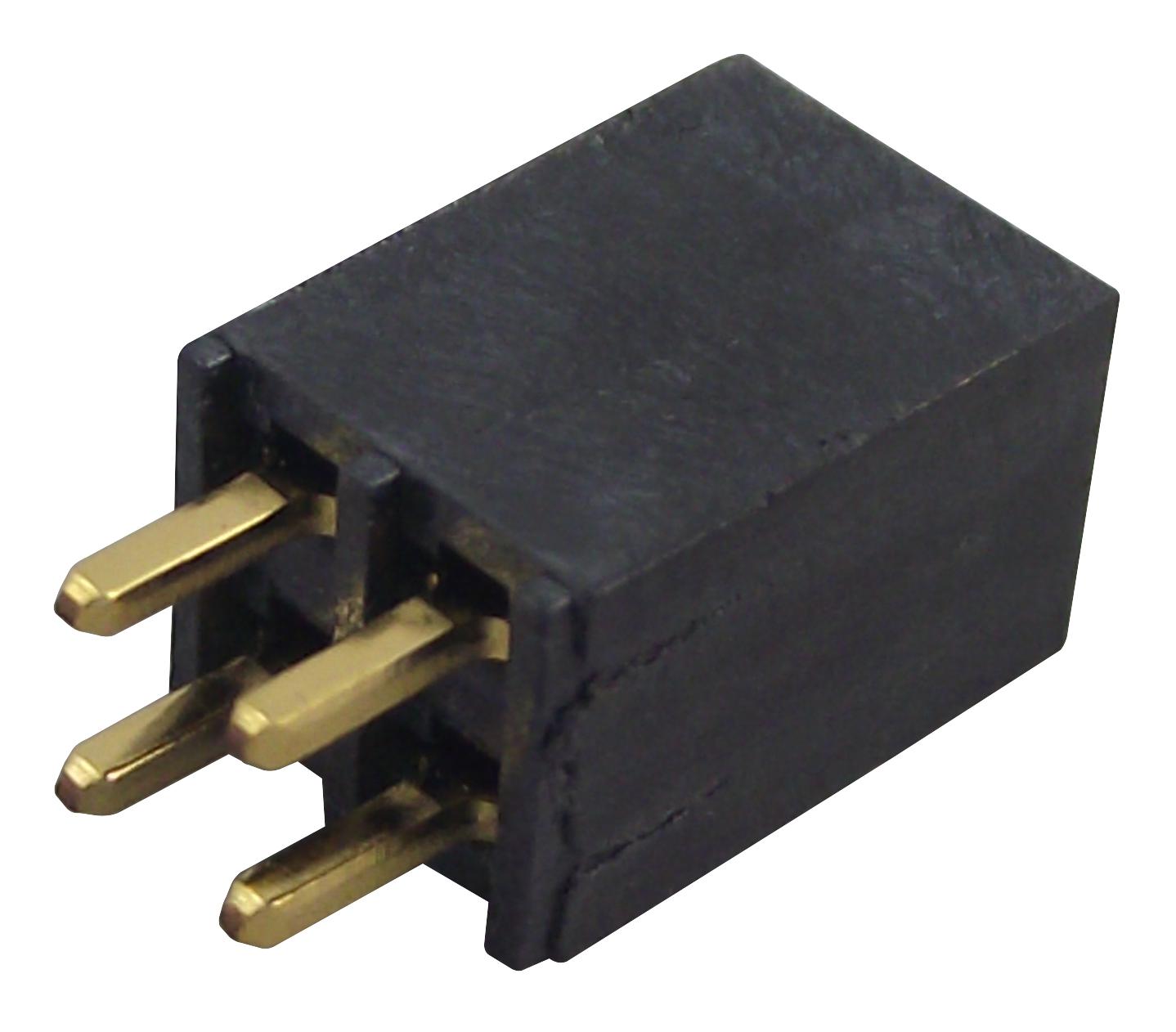

SAMTEC SSQ10401GD Square Post Socket
This through-hole, square post socket features a black liquid crystal polymer insulator with options for high-temperature thermoplastic. Made of phosphor bronze contact material, it offers gold or tin plating, with a maximum operating temperature of 125°C or 105°C depending on the plating. It supports currents up to 6.3 A per pin, with an insertion depth of 0.145" to 0.250". Designed for durability, it withstands up to 100 mating cycles, with a voltage rating of 550 VAC, and is RoHS compliant, suitable for connecting various electronic components in industrial applications.
SAMTEC SSQ10401GD Square Post Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer or High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin, 50u"/1.27μm
- Current Rating: 6.3 A per pin
- Operating Temperature: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Contact Resistance: 10 mΩ
- Insertion Depth: 0.145" to 0.250"
- Voltage Rating: 550 VAC
- Number of Cycles: Up to 100
- RoHS Compliant
- Support Up to 6 oz (1.67 N) Insertion Force
- Max Pins: 36 per connector
- Compatible Mates: TSW, MTSW, TSSL, ZW, TSS, ZSS, TSM, TSSH, HTSS
Buy the Buy Samtec Through-Hole Square Post Socket Part Number SSQ10401GD Online
Purchase the Samtec Square Post Socket SSQ10401GD online today—designed for reliable, high-temperature electronic connections with durable phosphor bronze contacts, gold or tin plating, supporting up to 6.3A per pin. With an operating temperature up to 125°C, it offers easy insertion and withdrawal forces, up to 100 mating cycles, and complies with RoHS standards. Ideal for industrial applications, it ensures secure connections in complex electronic systems, providing enhanced performance and longevity for manufacturing and repair projects.
Get Samtec SSQ10401GD today—engineered for precision and long-lasting durability in electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC SSQ10401GD?
You can click on the BUY or RFQ button to purchase SSQ10401GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ10401GD?
You can download the SSQ10401GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ10401GD?
SAMTEC
