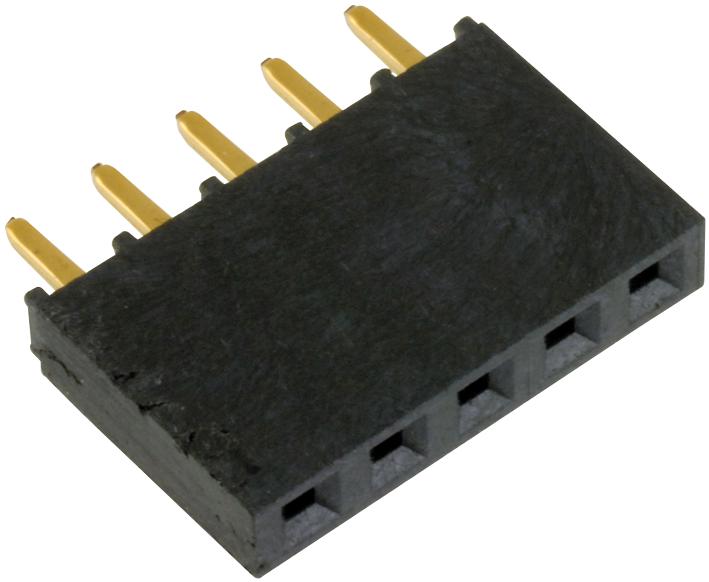

SAMTEC SSQ12301SS019LL Through-Hole Socket
The product is a thru-hole 0.025-inch square post socket designed for reliable electrical connections. Made with black Liquid Crystal Polymer insulators and phosphor bronze contacts, it features gold or tin plating for enhanced conductivity. Capable of operating between -55°C and +125°C, it supports currents of 6.3 A and 47 A per pin, with an insertion depth of 3.68 mm to 6.35 mm. It is RoHS compliant, lead-free, and available in various row options and plating finishes, suitable for high-temperature and high-current applications.
SAMTEC SSQ12301SS019LL Through-Hole Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer or High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin
- Current Rating: 6.3 A per pin, 47 A per row
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insertion Depth: 3.68 mm to 6.35 mm
- Temperature Rating: -55°C to +125°C
- Voltage Rating: 465 VAC / 655 VDC
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Applicable Rows: -S, -D, -P, -T, -Q
- Contact Plating Thickness: 0.25 μm (Gold), 0.51 μm (Gold), Matte Tin
- Compatible Mates: TSW, MTSW, MTLW, Ew, ZW, TSS, ZSS, TSM, TSSH, HTSS
Buy the Samtec Series Through-Hole Socket: SSQ12301SS019LL
Order the Samtec through-hole socket SSW-125-01-G-S online today. Engineered with durable phosphor bronze contacts and high-quality insulators, it supports high current ratings and operates reliably across a wide temperature range. Featuring gold or tin plating, this versatile socket is suitable for demanding electronic assemblies requiring secure, long-lasting connections. Its RoHS compliance ensures environmentally safe manufacturing. Purchase now for fast delivery and trusted quality, perfect for applications needing high-temperature and high-current standards.
Get Samtec SSW-125-01-G-S today—built for high-current power applications and long-lasting durability.
Frequently Asked Questions
Where can I buy SAMTEC SSQ12301SS019LL?
You can click on the BUY or RFQ button to purchase SSQ12301SS019LL from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ12301SS019LL?
You can download the SSQ12301SS019LL datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ12301SS019LL?
SAMTEC
