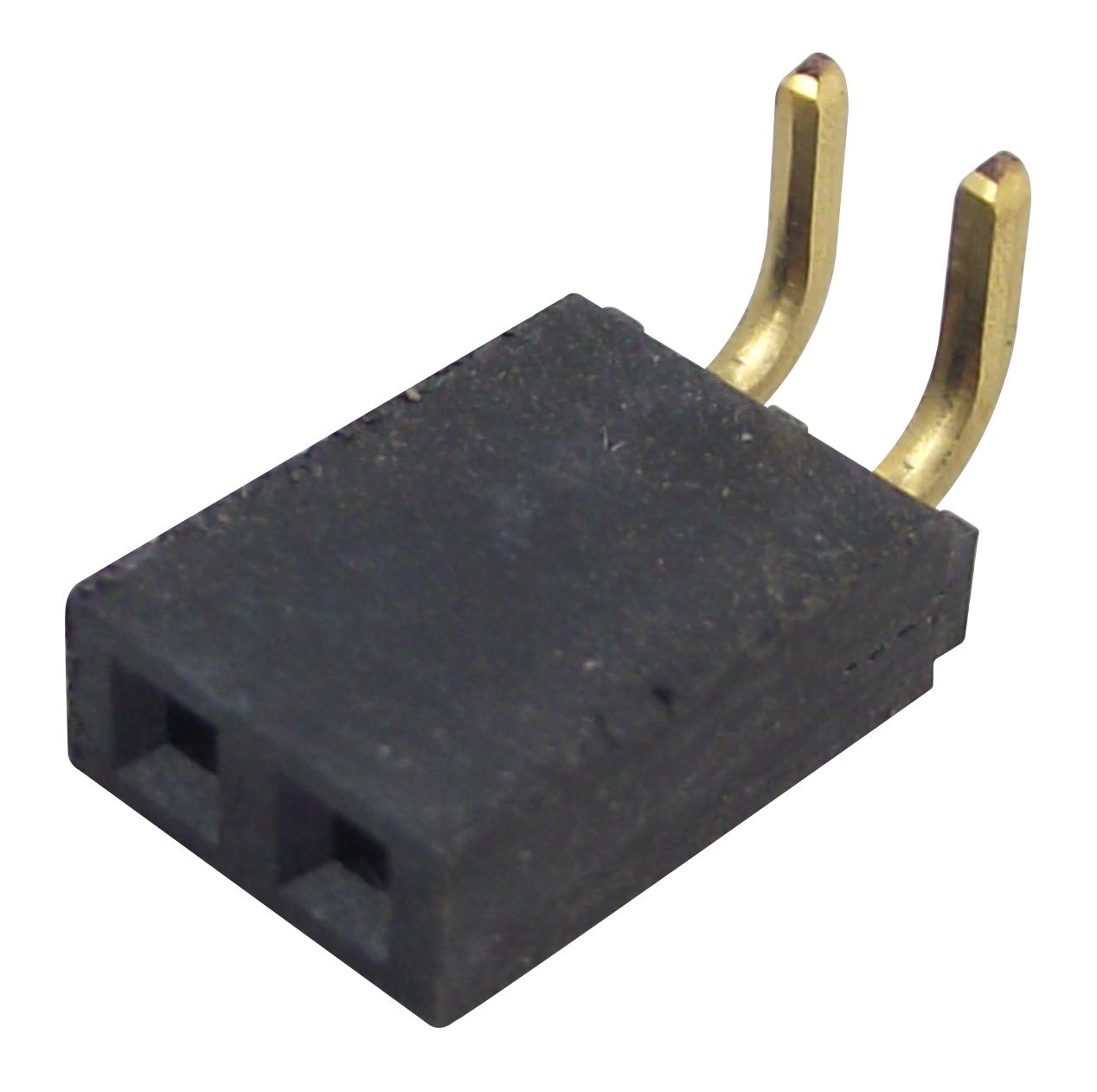

SAMTEC SSQ12402GSRA High Power Socket
This high-quality through-hole socket features a black Liquid Crystal Polymer insulator and phosphor bronze contacts with gold and tin plating options. Capable of operating within a temperature range of -55°C to +125°C with gold plating and -55°C to +105°C with tin, it supports current ratings up to 6.3 A per pin and voltage ratings of 465 VAC / 655 VDC. The socket offers various lead and row options, with RoHS compliance. Designed for reliable power and signal connections, it ensures durability with maximum insertion force and secure mating in electronic assemblies.
SAMTEC SSQ12402GSRA High Power Socket Specifications:
- Insulator Material: Liquid Crystal Polymer or High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin, 50 yt" Nickel
- Current Rating: 6.3 A per pin
- Voltage Rating: 465 VAC / 655 VDC
- Operating Temperature Range: -55°C to +125°C with gold, -55°C to +105°C with tin
- Insertion Depth: 3.68 mm (to 6.35 mm)
- Standard Force: 125 grams (4.4 N)
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Row Options: -S and -D
- Wave Solder Option: -P, -T, -Q
- Mates with: TSW, MTSW, MTLW, ZW, TSS
- Voltage Rating: 465 VAC / 655 VDC
- Maximum Insertion Force: 125 grams
- Temperature Range: -55°C to +125°C
- Acceptance of multiple plating options, various lead styles, and configurations ensure suitability for diverse applications.
Buy the Samtec Series SSW High Power Socket: SSQ12402GSRA
Order the Samtec high power socket online today to ensure secure, durable power and signal connections for your electronic projects. Designed with advanced materials like liquid crystal polymer insulators and phosphor bronze contacts, this socket features gold and tin plating options for optimal conductivity and corrosion resistance. Capable of operating from -55°C to +125°C, it supports current ratings up to 6.3 A per pin and voltage ratings of 465 VAC / 655 VDC. Its versatile configurations, RoHS compliance, and easy soldering make it ideal for demanding electronic assemblies, providing reliable performance and long-term durability. Buy now to enhance your electronics with quality connectors.
Buy Samtec SSW-125-01-G-S high power socket now and experience unmatched reliability and performance in electronic power and signal connections.
Frequently Asked Questions
Where can I buy SAMTEC SSQ12402GSRA?
You can click on the BUY or RFQ button to purchase SSQ12402GSRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ12402GSRA?
You can download the SSQ12402GSRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ12402GSRA?
SAMTEC
