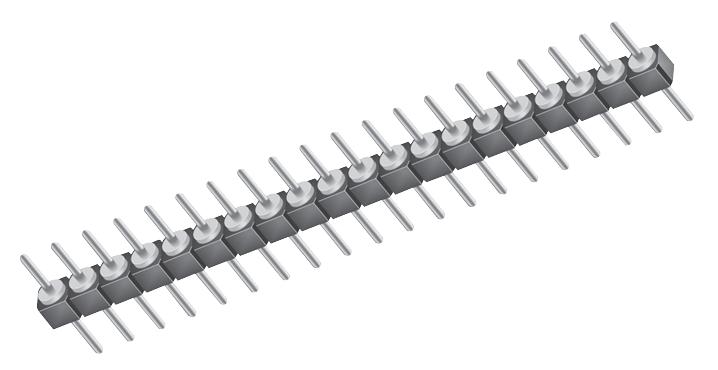

SAMTEC TS101GAA Precision Terminal Strip
The TS101GAA precision machined terminal strip offers reliable electrical connections with configurable pin counts and dual-in-line layout. Made from high-quality black polyester and liquid crystal polymer insulators, it features brass or phosphor bronze terminals plated with gold, tin, or nickel for optimal conductivity and corrosion resistance. Operating temperature ranges from -55°C to +125°C or +105°C depending on plating, adhering to RoHS compliance. Ideal for high-density electronics, these terminal strips are suitable for wave soldering and provide secure, customizable connections for versatile industrial and electronic applications.
SAMTEC TS101GAA Precision Terminal Strip Specifications:
- Insulator Material: Black G.F. Polyester for TS and TD styles, Black Liquid Crystal Polymer for HTS
- Terminal Material: Brass, Phosphor Bronze (Style G) with plated finishes including Au, Sn, Ni
- Operating Temp Range: -55°C to +125°C with gold plating, -55°C to +105°C with tin plating
- Number of Pins: Varies per model, standard and non-standard configurations available
- Pin Spacing: 1.92 mm (0.075 inches) to 2.54 mm (0.100 inches)
- DIA (Diameter): 4.22 mm (0.166 inches)
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes (TS Series), suitable for wave soldering
- Plating Thickness: Gold over 50µ
- Sn over 100µ
- Ni over 50µ
- Certifications: RoHS compliant, suitable for industrial and electronic applications
Buy the Samtec Series Precision Terminal Strip: TS101GAA
Discover the high-quality precision terminal strips from Samtec with customizable pin configurations, durable materials, and RoHS compliance. Designed for industrial and electronic applications, these terminal strips offer secure and flexible connections suitable for wave soldering. Made from high-grade insulators and plated with gold, tin, or nickel, they operate efficiently within temperature ranges from -55°C to +125°C. Engineered for reliability and compliance, order your Samtec Series TS101GAA terminal strip online today and enhance your electronic assemblies with dependable, easy-to-install components.
Order your Samtec Series TS101GAA precision terminal strip today and ensure secure, reliable connections for your high-density electronics projects.
Frequently Asked Questions
Where can I buy SAMTEC TS101GAA?
You can click on the BUY or RFQ button to purchase TS101GAA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TS101GAA?
You can download the TS101GAA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TS101GAA?
SAMTEC
