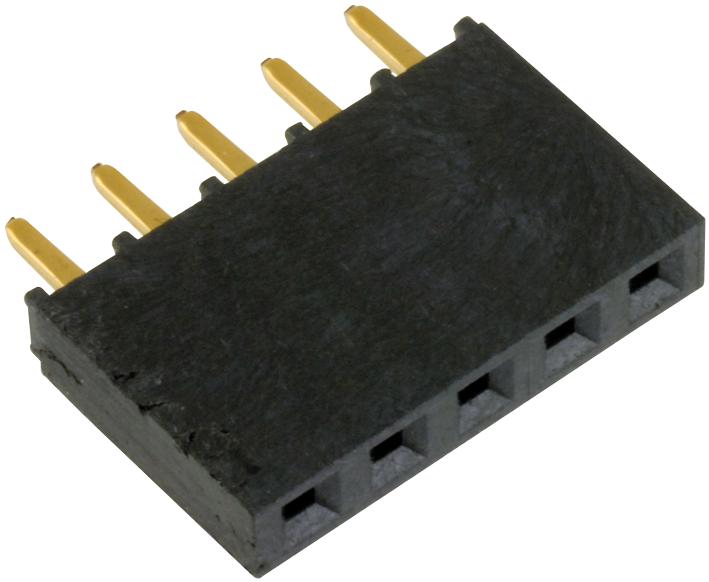

SAMTEC SSQ13601GSLL Square Post Socket
The through-hole .025-inch square post socket offers versatile compatibility with various contact and plating options like gold or tin, high temperature thermoplastic or liquid crystal polymer insulators, and current ratings up to 6.3 A. Designed for applications requiring robust electrical connections, it features insulators made from high-quality materials, multiple solder tail options, and RoHS compliance. Suitable for power and signal interconnections within electronic assemblies, it supports operating temperatures from -55°C to +125°C and accommodates different insertion forces and lead styles for versatile use.
SAMTEC SSQ13601GSLL Square Post Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer or High Temperature Thermoplastic
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin, 50 yt" Nickel
- Current Rating: 6.3 A per pin
- Operating Temperature Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Insertion Depth: 3.68 mm to 6.35 mm
- Voltage Rating: 465 VAC / 655 VDC
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Maximum Insertion Force: 125 grams (4.4 N)
- Gold Plating Thickness: 10 p" (0.25 um)
- Applicable Row Options: -S, -D, -P, -T, -Q
- Compatible Mates: TSW, MTSW, MTLW, ZW, TSS, ZSS, TSM, TSSH, HTSS
Buy the Samtec Series SSW Through-Hole .025 Inch Square Post Socket: SSQ13601GSLL
Purchase the Square Post Socket online now to ensure secure and reliable electrical connections for your electronic projects. Designed with high-quality insulators and plated contacts, it supports a range of voltages and currents up to 6.3 A. Features include versatile insulator materials, multiple plating options like gold or tin, and RoHS compliance. Ideal for power and signal applications, this socket offers robust insertion depths, high-temperature tolerance, and compatibility with various lead styles, making it perfect for demanding electronic assemblies.
Buy Samtec SSQ13601GSLL now and experience unmatched reliability and high-performance electrical connections in your electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC SSQ13601GSLL?
You can click on the BUY or RFQ button to purchase SSQ13601GSLL from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSQ13601GSLL?
You can download the SSQ13601GSLL datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSQ13601GSLL?
SAMTEC
