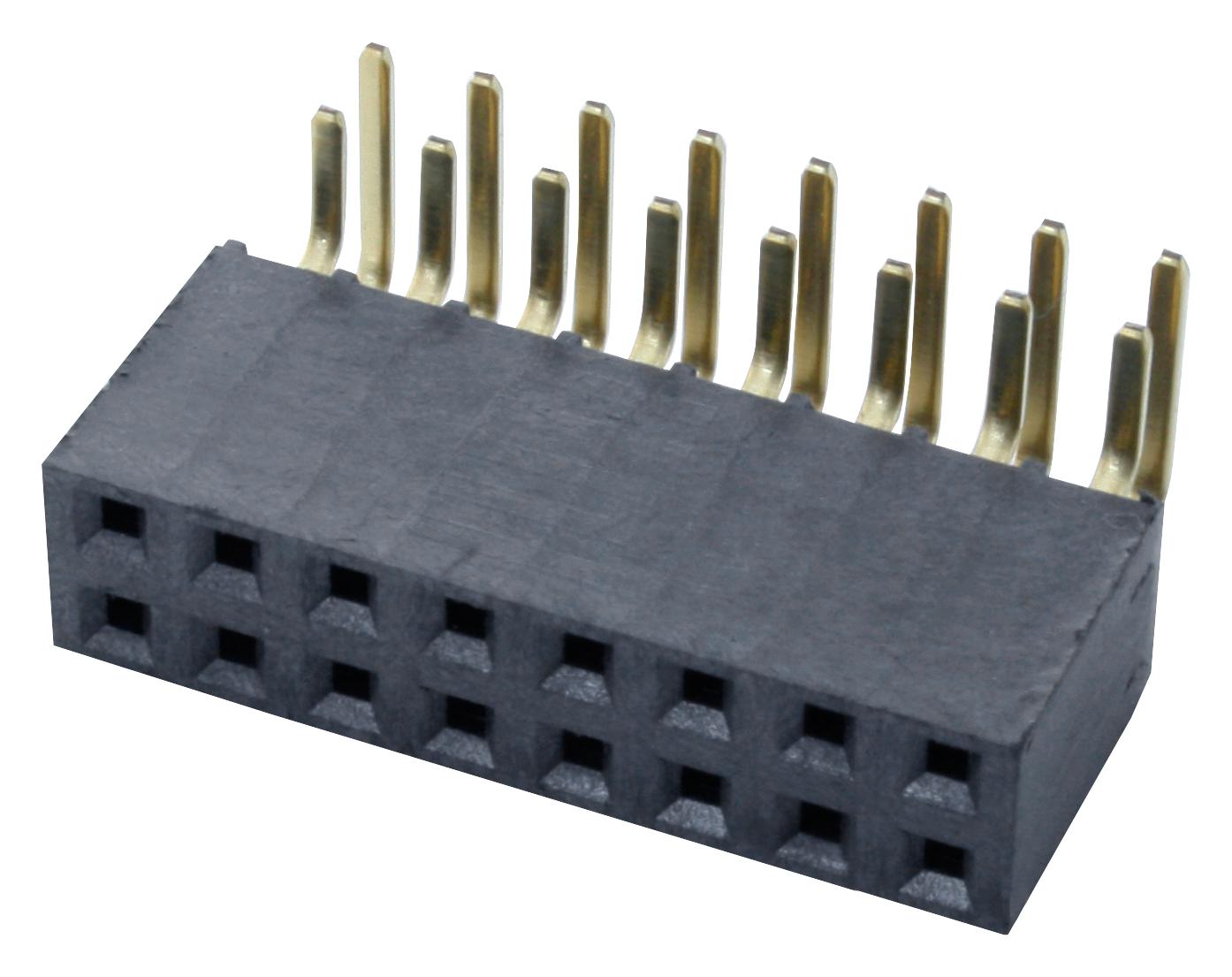

SAMTEC SSW10302SDRA Square Post Socket
The SSW-125-01-G-S is a through-hole square post socket connector with a .025-inch square post, designed for high reliability in electronic and electronic component connections. Made from black Liquid Crystal Polymer insulator material, it offers optimal heat resistance and durability. Contacts are crafted from phosphor bronze with gold and nickel plating, ensuring excellent electrical conductivity and corrosion resistance. Capable of withstanding voltage ratings up to 465 VAC / 655 VDC, it supports applications needing robust and stable connections, especially in environments demanding high temperature tolerance from -55°C to +105°C. RoHS compliant and lead-free solderable, it features a 6.3 A per pin current rating, and a standard insertion depth of 3.68 mm, with various options on tail length and plating for versatile use.
SAMTEC SSW10302SDRA Square Post Socket Specifications:
- Contact Material: Phosphor Bronze with gold and nickel plating
- Insulator Material: Black Liquid Crystal Polymer
- Voltage Rating: 465 VAC / 655 VDC
- Current Rating: 6.3 A per pin
- Temperature Range: -55°C to +105°C
- Insertion Depth: 3.68 mm
- RoHS Compliance: Yes
- Lead-Free: Yes
- Plating: 50 µ
- Au or Sn over Ni
- Pin Size: .025 inch square post
- Maximum Pins: 36 per connector
- Operating Environment: High temperature and RoHS compliant
- Physical Dimensions: Standard length .100 inch (2.54 mm), with options available, no standard non-standard lengths
Buy the Buy Samtec SSW-125-01-G-S Part Number SSW10302SDRA Online
Purchase the robust and high-quality square post socket connector from Samtec online today. Designed with a .025-inch square post, this connector features phosphor bronze contacts plated with gold and nickel for optimal conductivity and corrosion resistance. Ideal for high-temperature applications from -55°C to +105°C, it supports voltages up to 465 VAC / 655 VDC and current ratings of 6.3 A per pin. RoHS compliant and lead-free, this connector ensures reliable performance in demanding electronic environments. Order now for fast, secure online shopping.
Buy Samtec SSW-125-01-G-S now and experience unmatched reliability and high-temperature performance for your electronic connections.
Frequently Asked Questions
Where can I buy SAMTEC SSW10302SDRA?
You can click on the BUY or RFQ button to purchase SSW10302SDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSW10302SDRA?
You can download the SSW10302SDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSW10302SDRA?
SAMTEC
