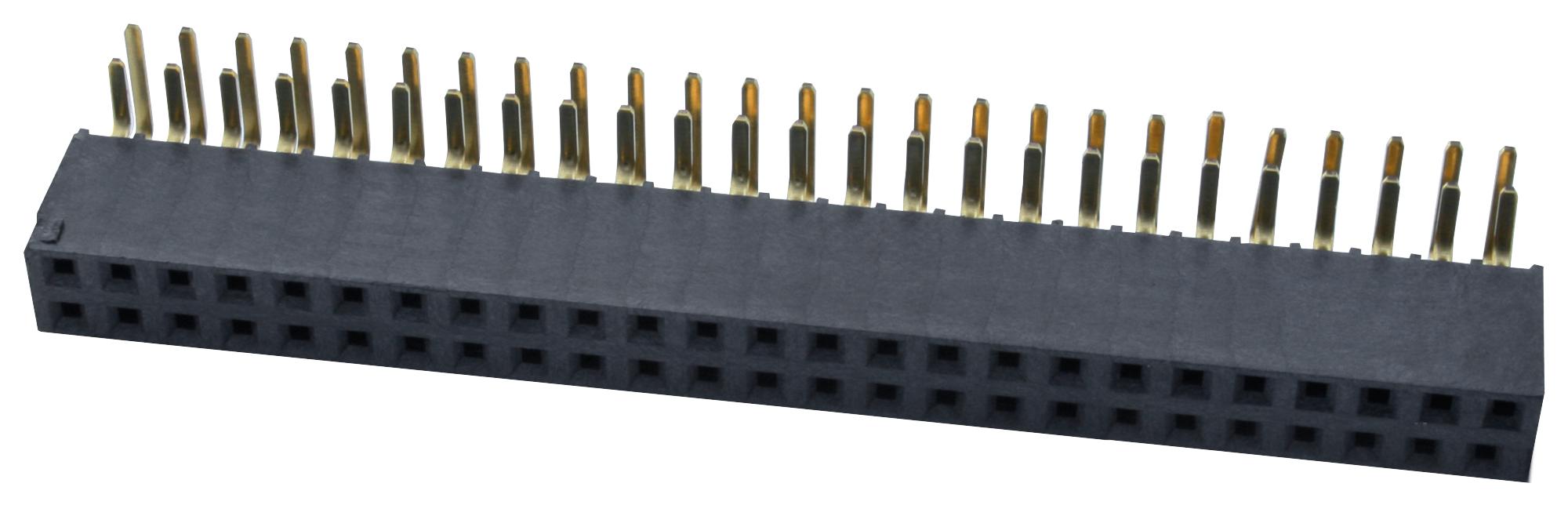

SAMTEC SSW12502GDRA Socket Strip
The SSW series from Samtec are Tiger Buy through-hole socket strips ideal for diverse electronic applications. Featuring 0.025-inch (0.635mm) square post sockets, these connectors support single, dual, or triple row configurations, and are compatible with various Samtec series. They include standard and low insertion force contacts with solder tails, operating within -55°C to 125°C temperature range. Made from black liquid crystal polymer or high-temperature thermoplastic insulators, with phosphor bronze contacts plated in gold or tin, they meet UL and CSA standards for reliability and safety.
SAMTEC SSW12502GDRA Socket Strip Specifications:
- Pitch Spacing: 2.54 mm
- Socket Type: Through-hole, square post
- Contact Material: Phosphor Bronze
- Plating: Gold or Tin
- Insulator Material: Black Liquid Crystal Polymer or High-Temperature Thermoplastic
- Operating Temperature Range: -55°C to +125°C
- Number of Rows: Single, Dual, or Triple
- Maximum Contacts per Row: 50
- Orientation Options: Straight and Right-Angle (-RA)
- Current Rating: 6.3 A per pin
- Voltage Rating: 465 VAC / 655 VDC
- RoHS Compliant: Yes
- Certifications: UL Listed, CSA Certified
Buy the Samtec Series SSW Socket Strips: SSW12502GDRA
Enhance your electronic assemblies with Samtec Series SSW socket strips, designed for robust through-hole connections. These connectors feature 0.025-inch square post sockets, support 1 to 50 contacts per row, and offer straight or right-angle options. Crafted from high-quality insulators like liquid crystal polymer or high-temperature thermoplastic, they guarantee stability across -55°C to 125°C. Phosphor bronze contacts plated in gold or tin ensure excellent conductivity and durability. RoHS compliant, compatible with various Samtec series, and suitable for demanding applications requiring reliable, high-performance interconnects. Purchase online now for fast delivery and quality assurance.
Order your Samtec Series SSW socket strip today and ensure reliable, high-temperature performance with easy through-hole mounting solutions.
Frequently Asked Questions
Where can I buy SAMTEC SSW12502GDRA?
You can click on the BUY or RFQ button to purchase SSW12502GDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SSW12502GDRA?
You can download the SSW12502GDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SSW12502GDRA?
SAMTEC
