SAMTEC TCSD25D020001N Tiger Eye Ribbon Socket
The TCSD-25-D-02.00-01-N from Samtec is a high-quality 2.00mm pitch, double-ended Tiger Eye IDC ribbon socket assembly with 50 contacts. Made from black glass-filled polyester insulator and Beryllium Copper contacts plated with 30 micro-inch gold, it offers reliable connection for industrial and electronic applications. It supports a current rating of 2.8A per pin, with compatible lead sizes from 0.48mm to 0.53mm, and insertion depths from 2.8mm to 3.17mm. Operating temperature ranges from -40°C to +105°C, with contact resistance around 15 milliohms. Designed for secure, polarization-assisted mating, its robust construction ensures long-lasting durability.
SAMTEC TCSD25D020001N Tiger Eye Ribbon Socket Specifications:
- Insulator Material: Black Glass Filled Polyester
- Contact Material: Beryllium Copper
- Plating: 30 micro-inch Gold over 50 micro-inch Nickel
- Wire: 28 AWG stranded, tinned copper with gray PVC insulator
- Current Rating: 2.8A per pin
- Operating Temperature Range: -40°C to +105°C
- Contact Resistance: Approximately 15 milliohms
- Insertion Depth: 2.8mm to 3.17mm
- Number of Contacts: 50
- Pitch: 2.00mm
- Assembly Length: 2 inches
- Compatible Connectors: Samtec TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM, ZSTMM series
- Standard Compliance: UL E111594, RoHS
- Lead Sizes Supported: 0.48mm to 0.53mm

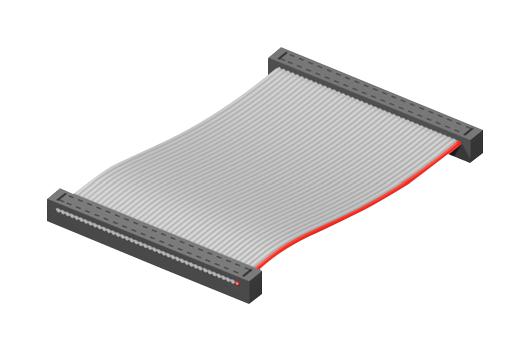

Buy the Buy Samtec Tiger Eye Connector Part Number TCSD25D020001N Online
Purchase the Samtec Tiger Eye Ribbon Socket today online and experience dependable, high-quality connections for your electronic and industrial projects. This 2.00mm pitch, 50-contact assembly features durable Beryllium Copper contacts plated with gold for excellent conductivity, ensuring long-lasting performance in demanding environments. Its robust black glass-filled polyester insulator provides durability, while the support for 2.8A per pin and temperature range from -40°C to +105°C guarantees reliable operation across various applications. Purchase now for fast shipping and competitive prices, ideal for secure circuit connections and detailed electronic assembly needs.
Get Samtec TCSD25D020001N today—designed for secure high-reliability connections in industrial electronics.
Frequently Asked Questions
Where can I buy SAMTEC TCSD25D020001N?
You can click on the BUY or RFQ button to purchase TCSD25D020001N from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TCSD25D020001N?
You can download the TCSD25D020001N datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TCSD25D020001N?
SAMTEC
