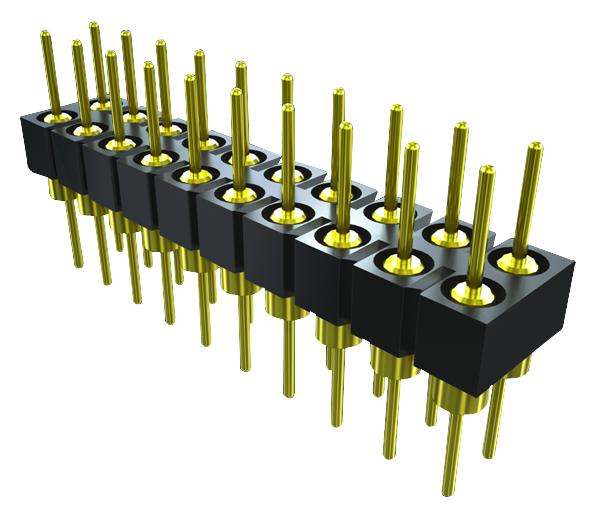

SAMTEC TD125GA Precision Terminal Strips
Precision machined terminal strips are essential for various electrical and electronic applications, offering reliable connections with high-temperature tolerance and RoHS compliance. Made from high-quality materials such as brass, phosphor bronze, and liquid crystal polymer insulators, they feature gold or tin plating for optimal conductivity and corrosion resistance. Designed for efficiency and durability, these terminal strips accommodate different pin counts and dimensions, suitable for industrial, automation, and control systems. The wide operating temperature range ensures performance stability in harsh environments, making them ideal for complex wiring and circuit assemblies.
SAMTEC TD125GA Precision Terminal Strips Specifications:
- Insulator Material: Black G.F. Polyester (TS, TD), Black Liquid Crystal Polymer (HTS)
- Terminal Material: Brass, Phosphor Bronze (Style G), Gold or Tin plating
- Plating: Au over 50μ
- (1.27 μm), Sn over 100μ
- (2.54 μm), Ni over 50μ
- (1.27 μm)
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes (TS Series, Wave Solder Only)
- Pin Count & Diameter: Varies; typical diameter 4.22 mm (0.166 inches), pin ranges differ with styles
- Dimensions: Length varies with style, typical range approximately 17.88 mm (0.70 inches) to 22.00 mm (0.87 inches)
- Style Options: TS, TD, HTS, with specific dimensions and pin arrangements
- Application Areas: Industrial wiring, control systems, automation, electronics
- Design Features: Precise machining, high conductivity, corrosion resistance, temperature stability
Buy the Samtec TD125GA – Reliable Terminal Strips for Industrial Applications
Purchase your Samtec Series TD125GA terminal strips online today for high-quality, precision-engineered connection components suited for industrial, automation, and electronic projects. These terminal strips feature durable materials, gold or tin plating for corrosion resistance, and a wide operating temperature range from -55°C to +125°C, ensuring performance in harsh environments. Designed for reliable, easy-to-install wiring solutions, they support various pin counts and dimensions, making them ideal for circuit assembly and control systems. Get your reliable terminal connection solutions now with fast online ordering.
Order your Samtec Series TD125GA terminal strips today and enhance your wiring reliability with our durable high-temperature connection solutions.
Frequently Asked Questions
Where can I buy SAMTEC TD125GA?
You can click on the BUY or RFQ button to purchase TD125GA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TD125GA?
You can download the TD125GA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TD125GA?
SAMTEC
