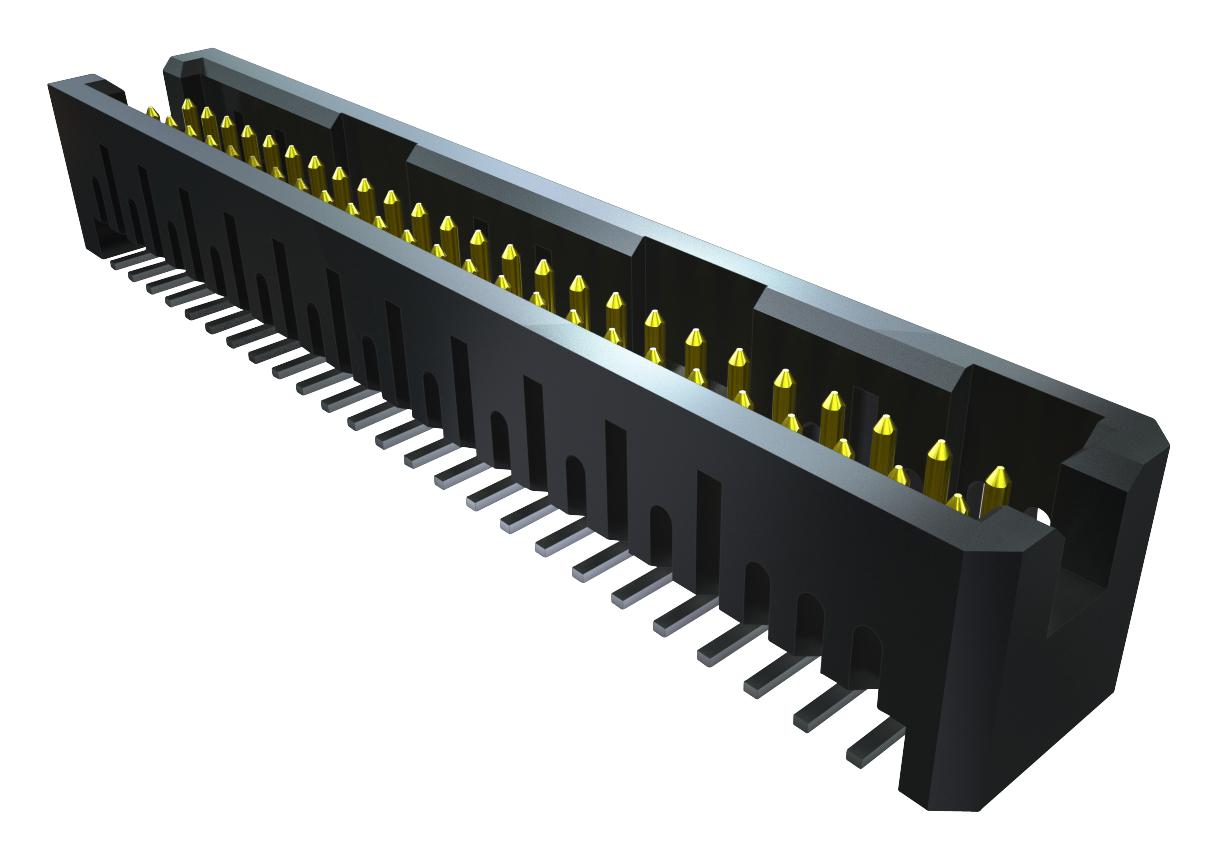

SAMTEC TFM11001SDRA PCB Header Connector
The TFM11001SDRA is a high-performance, surface mount or through-hole header connector designed for flexible PCB connections in commercial and industrial applications. Featuring black liquid crystal polymer insulation and phosphor bronze terminals with gold over nickel plating, it supports current ratings up to 32A per pin and operates within a temperature range of -55°C to +125°C. This RoHS-compliant component offers reliable solderability, coplanarity, and a variety of mating options, including locking and screw-down features, making it suitable for demanding electronic assemblies requiring secure, durable connections.
SAMTEC TFM11001SDRA PCB Header Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Au or Snover 50 0" (1.27 μm) Ni
- Current Rating: 32 A per pin (2 pins powered)
- Voltage Rating: 280 VAC mated with SFM
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Mated Heights: Adjustable based on model, with options for shrouded or ruggedized bodies
- Pitch: 0.050" (1.27 mm)
- Mounting: Surface mount or through-hole, with screw-down or locking options
- Connector Grades: Multiple array sizes from 5 to 50 positions, with various lead styles and plating options
- Design Features: Modular, ruggedized, with optional weld tabs, locking clips, and pass-through options
Buy the Samtec Series TFM PCB Header: TFM11001SDRA
Purchase the Samtec TFM11001SDRA PCB header connector online now to ensure secure, durable, and high-quality electronic connections. This versatile connector features liquid crystal polymer insulation, gold-plated terminals, and supports current ratings up to 32A per pin. Its flexible mounting options include surface mount and through-hole with screw-down or locking features, suitable for demanding industrial and commercial use. With RoHS compliance and excellent temperature range, order today for dependable assembly performance and long-lasting service life.
Get Samtec TFM11001SDRA today—built for reliable, high-current PCB connection solutions.
Frequently Asked Questions
Where can I buy SAMTEC TFM11001SDRA?
You can click on the BUY or RFQ button to purchase TFM11001SDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TFM11001SDRA?
You can download the TFM11001SDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TFM11001SDRA?
SAMTEC
