SAMTEC TFML10701SDRA Shrouded Connector
The product is a versatile shrouded connector designed for PCB applications, available in surface mount and through-hole options. Made with a black liquid crystal polymer insulator and Phosphor Bronze terminals, it features gold or tin plating over nickel. Rated for 3.2A per pin at 250 VAC, it operates from -55°C to +125°C and is RoHS compliant. Suitable for blind mating with high pin counts, it offers options like locking clips, weld tabs, and solder nails, ensuring reliable electrical connection and durability in electronic assemblies.
SAMTEC TFML10701SDRA Shrouded Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold or Tin over Nickel (1.27 μm)
- Current Rating: 3.2A per pin
- Voltage Rating: 250 VAC
- Operating Temperature: -55°C to +125°C
- RoHS Compliant: Yes
- Pitch: 1.27 mm (.050 inch)
- Configuration: Surface mount and Through-hole options
- Locking and weld tab options available
- Number of positions: varies from 5 to 50
- Processing: Lead-Free Solderable

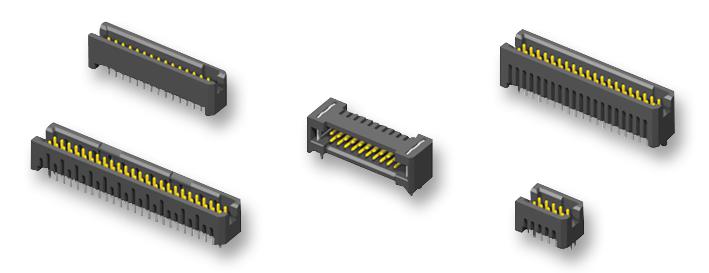

Buy the Buy Samtec TFM-110-02-L-D-LC Part Number TFM-110-02-L-D-LC Online
Purchase the Samtec TFM-110-02-L-D-LC connector online today for reliable and efficient PCB connections. Its versatile design supports both surface mount and through-hole mounting options, engineered with high-quality materials like liquid crystal polymer and phosphor bronze for durability. Rated for 3.2A per pin at 250 volts, it operates within a temperature range of -55°C to +125°C. With additional features such as locking clips, weld tabs, and optional solder nails, this connector ensures secure, high-performance electronic assemblies. Order now for fast delivery and consistent performance.
Buy Samtec TFM-110-02-L-D-LC now and experience unmatched reliability and performance in high-density PCB connections.
Frequently Asked Questions
Where can I buy SAMTEC TFML10701SDRA?
You can click on the BUY or RFQ button to purchase TFML10701SDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TFML10701SDRA?
You can download the TFML10701SDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TFML10701SDRA?
SAMTEC
