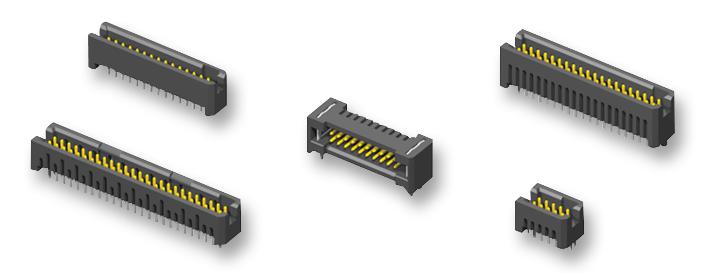

SAMTEC TFML15002SDA Shrouded Header
The product is a versatile shrouded header designed for PCB connections, available in surface-mount and through-hole configurations. Constructed with black liquid crystal polymer insulators and phosphor bronze terminals, it features gold or tin over nickel plating for optimal conductivity and corrosion resistance. Rated for 250 VAC, it supports currents up to 3.2A per pin. Its operational temperature ranges from -55°C to +125°C, conforming to RoHS standards. Suitable for blind mating applications, this connector offers reliable locking, welding, and locking clips, ensuring durable, high-quality connections for industrial and electronic assemblies.
SAMTEC TFML15002SDA Shrouded Header Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold or Tin over Nickel, 1.27 μm
- Current Rating: 3.2A per pin
- Voltage Rating: 250 VAC
- Operating Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Supported Configurations: Surface Mount and Through-Hole
- Pitch: 1.27 mm (.050 inch)
- Number of Positions: 5 to 50 positions
- Processing: Lead-Free Solderable
- Additional Options: Locking, Welding, Weld Tab, Locking Clip, Solder Nail
Buy the Samtec TFM-150-02-L– Reliable PCB Header for Industrial Applications
Purchase the high-quality shrouded header online from Samtec now to ensure secure and reliable PCB connections in your industrial electronics. Featuring liquid crystal polymer insulation and phosphor bronze terminals with gold or tin plating, it guarantees corrosion resistance and excellent electrical performance. Rated for 250 VAC and supporting currents up to 3.2A per pin, it suits various configurations with surface-mount and through-hole options. The header operates within -55°C to +125°C, making it ideal for demanding industrial applications. Order now for efficient, durable connectivity solutions.
Buy Samtec TFM-150-02-L now and experience unmatched reliability and performance with high-current, high-temperature PCB headers suitable for demanding industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC TFML15002SDA?
You can click on the BUY or RFQ button to purchase TFML15002SDA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TFML15002SDA?
You can download the TFML15002SDA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TFML15002SDA?
SAMTEC
