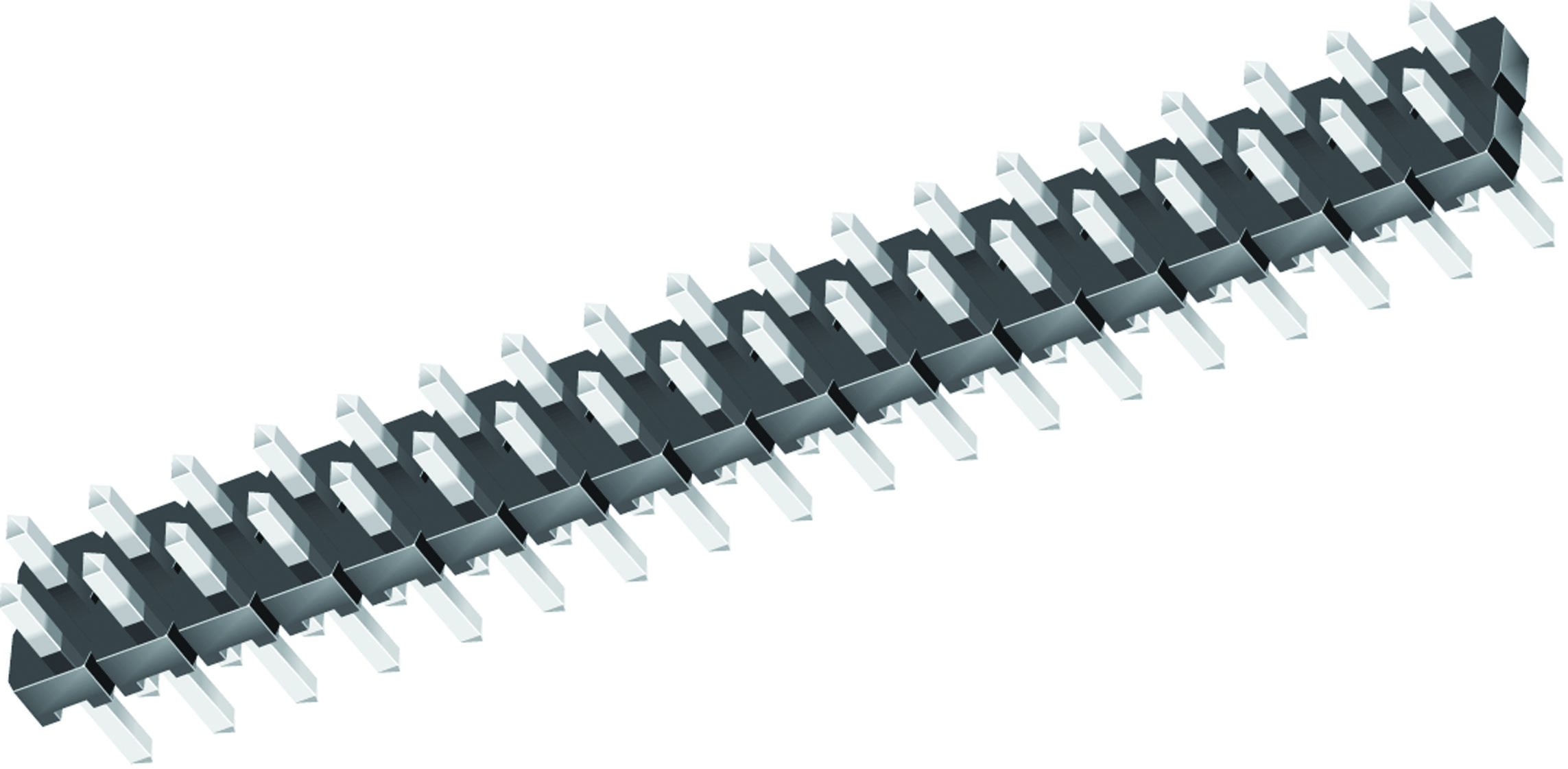

SAMTEC TLW12005GD Low Profile Terminal Strip
The TLW-120-05-G-D is a 40-pole, 2-row, 2.54mm low-profile terminal strip designed for stacking systems. It features 0.025-inch (0.64 mm) square posts, 10 microns (0.25 µm) gold-plated phosphor bronze contacts, and a high-quality Liquid Crystal Polymer insulator. Rated for 5.2A, it offers a reliable, solderable through-hole connection with a compact, low-profile form factor. Compatible with multiple connector series, this component is ideal for industrial automation, electronics, and manufacturing applications requiring durable, space-efficient terminal connections with short post height for socket compatibility.
SAMTEC TLW12005GD Low Profile Terminal Strip Specifications:
- Pole Count: 40
- Number of Rows: 2
- Pitch: 2.54mm (0.100 inch)
- Post Size: 0.025 inch (0.64 mm) square
- Contact Material: Phosphor Bronze
- Plating: Gold flash on contacts and tail
- Insulator Material: Liquid Crystal Polymer (LCP)
- Current Rating: 5.2A per pin
- Temperature Range: -55°C to +105°C with Tin, -55°C to +125°C with Gold
- Lead Finish: Sn or Au
- RoHS Compliant: Yes
- Termination: Through-hole, solderable
- Color: Black
- Series Compatibility: CES, HLE, ISDM, ISSM, MNT, SLW, SMSD, SMSS, SNT, SSQ, SSW
- Application: Industrial, electronics, automation, manufacturing
- Dimensions: 2.54mm pitch, 10 microns gold plating, compact profile
Buy the Samtec TLW12005GD – Reliable Terminal Strip for Industrial Applications
Purchase the Samtec TLW12005GD terminal strip online today and enhance your industrial and automation systems with a compact, durable, and reliable connection solution. Featuring 40 poles, 2 rows, and 2.54mm spacing, it offers high-quality gold-plated phosphor bronze contacts, a low-profile form factor, and excellent current capacity of 5.2A per pin. Its solderable through-hole design ensures secure connections, while the high-quality LCP insulator withstands demanding environmental conditions. Ideal for space-constrained applications requiring dependable, long-lasting electrical connections, all available for quick online ordering.
Buy Samtec TLW12005GD now and experience unmatched reliability and performance in your industrial and automation projects.
Frequently Asked Questions
Where can I buy SAMTEC TLW12005GD?
You can click on the BUY or RFQ button to purchase TLW12005GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TLW12005GD?
You can download the TLW12005GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TLW12005GD?
SAMTEC
