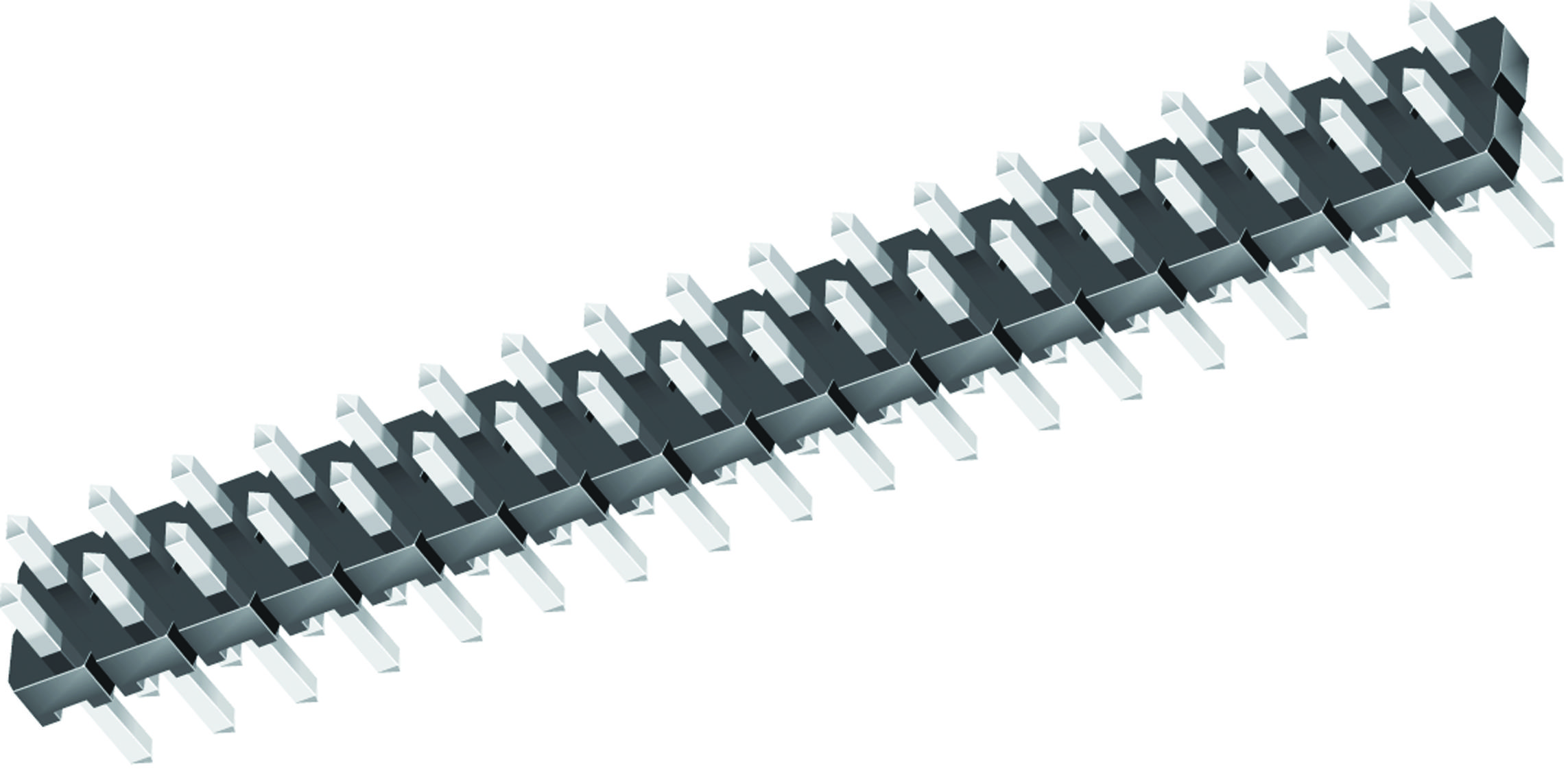

SAMTEC TLW13605GD Low Profile Connector
The TLW-136-05-G-S-110 is a low profile header designed for compact electronic assemblies. Featuring 0.64 mm (.025 inch) square pins and a phosphor bronze terminal material with gold flash plating, it supports high reliability connection in space-constrained applications. The connector is RoHS compliant and supports operating temperatures from -55°C to +125°C with gold plating. It mates with low profile sockets, offering versatility for IDC assemblies and various other applications. Its black liquid crystal polymer insulator provides excellent electrical insulation and durability. Suitable for manufacturing and electronics assembly environments requiring space-saving and durable connections.
SAMTEC TLW13605GD Low Profile Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Gold flash or Sn over
- Pin Size: 0.64 mm (.025 inch)
- Pin Count: 1 to 40 positions
- Current Rating: 5.2 A per pin
- Operating Temperature: -55°C to +125°C depending on plating
- RoHS Compliance: Yes
- Lead-Free Solderable: Yes
- Series: TLW (standard), Modified MTLW for IDC assemblies
- Contact Row: 1 per row
- Compatibility: Mates with low profile sockets, suitable for space-constrained designs
- Length Range: Variable based on configuration, non-standard lengths available
- Certifications: RoHS compliant, updated according to latest standards
Buy the Samtec TLW-136-05-G-S-110 – Reliable Low Profile Electrical Connector for Industrial Applications
Order the Samtec TLW-136-05-G-S-110 online and enjoy fast delivery of a high-quality, low profile connector ideal for space-constrained electronic assemblies. Featuring 0.64 mm pins and gold flash plating, this connector offers outstanding electrical performance, durability, and RoHS compliance. It is suitable for diverse applications including IDC assemblies and low profile sockets, making it a versatile choice for engineers and manufacturing professionals seeking reliable interconnect solutions. Simplify your inventory and ensure seamless assembly with easy online purchasing, prompt support, and detailed specifications.
Buy Samtec TLW-136-05-G-S-110 now and experience unmatched reliability, space-saving design, and high-performance electrical connections for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC TLW13605GD?
You can click on the BUY or RFQ button to purchase TLW13605GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TLW13605GD?
You can download the TLW13605GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TLW13605GD?
SAMTEC
