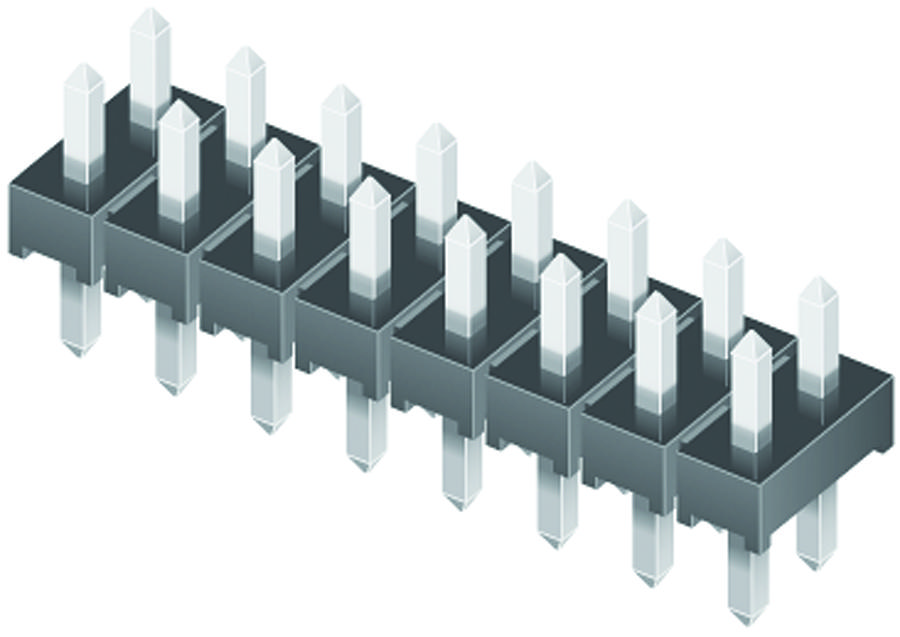

SAMTEC TMM10401GD Terminal Strip Header
The TMM series from Samtec features low-profile, flexible terminal strip headers with a 2mm pitch and 0.020-inch square posts. Compatible with various Samtec connector series, these unshrouded, through-hole headers support up to four rows and 200 pins, with options for single, dual, or four-row configurations. Constructed with phosphor bronze contacts plated with 20µ” gold over Ni, they operate from -55°C to 125°C, rated for 3.2A current. The durable black liquid crystal polymer insulator ensures long life, making them ideal for industrial PCB applications.
SAMTEC TMM10401GD Terminal Strip Header Specifications:
- Pitch: 2mm
- Post Size: 0.020-inch (0.50mm) square
- Contact Material: Phosphor Bronze
- Plating: 20µ” gold over Ni
- Temperature Range: -55°C to +125°C
- Current Rating: 3.2A per pin
- Insulator Material: Black Liquid Crystal Polymer
- Mounting: Horizontal to PCB
- Standards: UL Listed, CSA Certified
- Number of Rows: Up to 4
- Maximum Pins: 200
- Configuration: Straight orientation, with optional pick & place pads, alignment pins, tape & reel packaging
- Compatible with: CLT, SQT, SQW, ESQT, TLE, SMM, MMS, TCSD series
- RoHS Compliant
Buy the Samtec Series TMM Terminal Strip Headers: TMM10401GD
Purchase the Samtec Terminal Strip Header TMM10401GD online today to ensure high-quality, robust connections for your industrial electronics projects. Designed with a 2mm pitch and gold-plated phosphor bronze contacts, this low-profile header offers exceptional durability and electrical performance. Its liquid crystal polymer insulator withstands harsh environments, operating from -55°C to 125°C and rated for 3.2A current per pin. Available with various configurations and optional features such as pick & place pads and tape & reel packaging, enabling quick assembly and reliable connections in a wide range of industrial applications.
Buy Samtec TMM10401GD now and experience unmatched reliability and performance for industrial PCB connections.
Frequently Asked Questions
Where can I buy SAMTEC TMM10401GD?
You can click on the BUY or RFQ button to purchase TMM10401GD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMM10401GD?
You can download the TMM10401GD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMM10401GD?
SAMTEC
