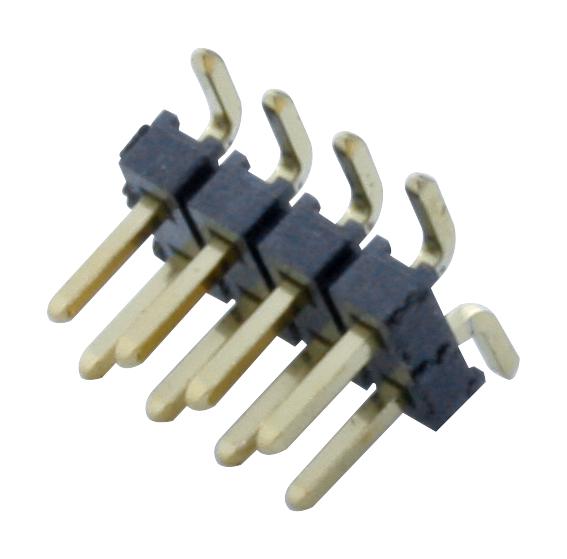

SAMTEC TMM10401GDSM Low Profile Connector
The TMM series from Samtec offers low-profile, surface mount headers with 0.020 inch (0.50 mm) square posts, designed for versatile industrial applications. Compatible with popular connectors like CLT, SQT, SQW, and others, they support up to four rows and 200 pins in any orientation, with a 2 mm pitch. Made from phosphor bronze with black liquid crystal polymer insulators, the headers are gold-plated, rated for 3.2A, and operate effectively from -55°C to 125°C, meeting UL and CSA standards for quality and safety.
SAMTEC TMM10401GDSM Low Profile Connector Specifications:
- Pitch: 2 mm
- Number of positions: 2 to 40 per row
- Material: Phosphor bronze
- Insulator Material: Black liquid crystal polymer
- Plating: Gold over 50u" Ni or Tin
- Current Rating: 3.2A per pin
- Operating Temperature Range: -55°C to +125°C
- Height: 0.50 mm (square posts)
- Compatibility: CLT, SQT, SQW, ESQT, TLE, SMM, MMS, TCSD
- RoHS Compliant: Yes
- Number of rows: Up to 4
- Rated voltage: 450 VAC mated with SQT, 450 VAC for other variants
- Processing: SMT Lead Coplanarity max. 0.006"
- Packaging options: Tape & Reel, optional pick & place pads, alignment pins
- Certifications: UL Listed, CSA Certified
Buy the Samtec Series TMM Low Profile Connectors: TMM10401GDSM
Enhance your electronic assemblies with the reliable and compact Samtec low-profile connector series. Featuring a 2 mm pitch, 200-pin capacity, and gold-plated contacts rated for 3.2A, these connectors operate effectively from -55°C to 125°C. Constructed from high-quality phosphor bronze with liquid crystal polymer insulators, they ensure durability and consistent performance. Compatible with multiple Samtec connector series, these headers are ideal for space-constrained applications requiring high reliability and compliance with international safety standards. Purchase online now for prompt delivery and superior quality.
Order your Samtec Series TMM10401GDSM low profile connectors today and ensure reliable connections for your industrial automation projects.
Frequently Asked Questions
Where can I buy SAMTEC TMM10401GDSM?
You can click on the BUY or RFQ button to purchase TMM10401GDSM from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMM10401GDSM?
You can download the TMM10401GDSM datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMM10401GDSM?
SAMTEC
