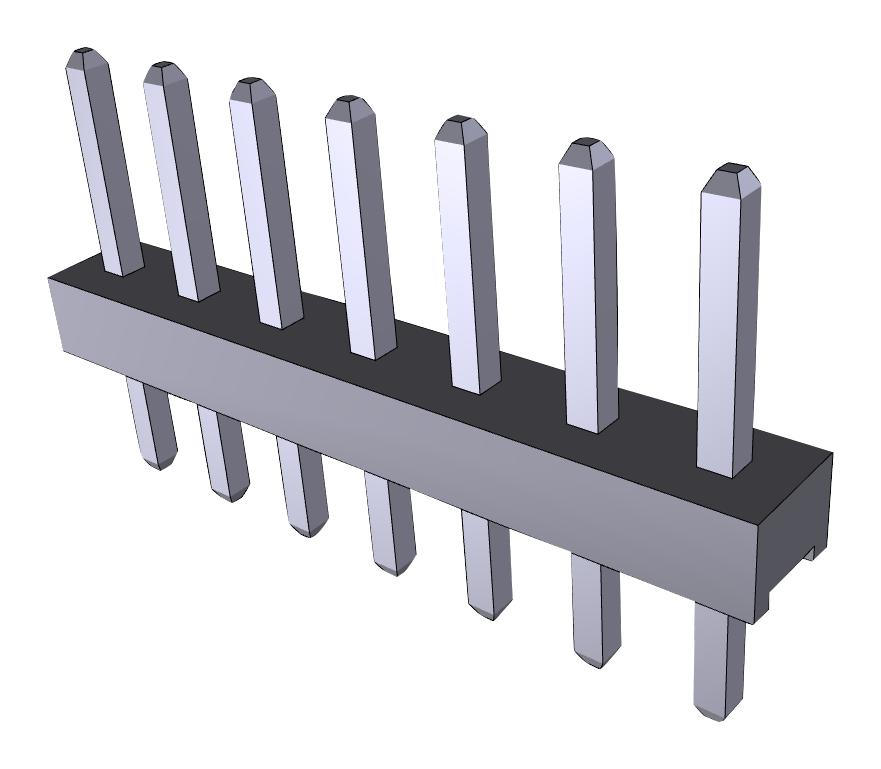

SAMTEC TMM10703TS Low Profile Header
The TMM series low profile header offers a compact, high-performance solution designed for PCB applications requiring minimal height. Crafted with a black liquid crystal polymer insulator and phosphor bronze terminals, it is plated with either tin or gold over nickel, ensuring excellent electrical conductivity and corrosion resistance. With a current rating of 3.2 A per pin and voltage ratings up to 450 VAC, it supports a temperature range from -55°C to +105°C or +125°C depending on plating. Compatible with various mating connectors, it features SMT coplanarity, optional pick & place pads, and tape & reel packaging, making it ideal for space-sensitive electronic designs.
SAMTEC TMM10703TS Low Profile Header Specifications:
- Material: Black Liquid Crystal Polymer insulator, Phosphor Bronze terminals
- Plating: Sn or Au over 50u" Ni
- Current Rating: 3.2 A per pin
- Voltage Rating: 450 VAC mated with SQW, 450 VAC with SQT
- Temperature Range: -55°C to +105°C (Sn plating), -55°C to +125°C (Au plating)
- RoHS Compliant: Yes
- SMT Lead Coplanarity: 0.006" max
- Optional Features: Pick & Place Pads, Tape & Reel packaging
- Design supports various mating connectors such as CLT, SQT, SQW, ESQT
- Dimensions include pitch of 2.00 mm (0.0787") and suitable for space-constrained applications
Buy the Buy Samtec Low Profile PCB Header Part Number TMM10703TS Online
Purchase the Samtec TMM10703TS low profile header online today and enjoy a high-quality, space-efficient connector solution. Designed with liquid crystal polymer insulation, phosphor bronze contacts, and gold or tin plating, this product ensures excellent electrical performance and durability. It supports up to 3.2 A current and 450 VAC voltage rating, with a temperature range suitable for demanding environments. Features include SMT coplanarity, optional pick & place pads, and tape & reel packaging, making it perfect for modern electronic designs requiring compact, reliable connections.
Buy Samtec TMM10703TS now and experience reliable performance with compact design for space-sensitive electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC TMM10703TS?
You can click on the BUY or RFQ button to purchase TMM10703TS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMM10703TS?
You can download the TMM10703TS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMM10703TS?
SAMTEC
