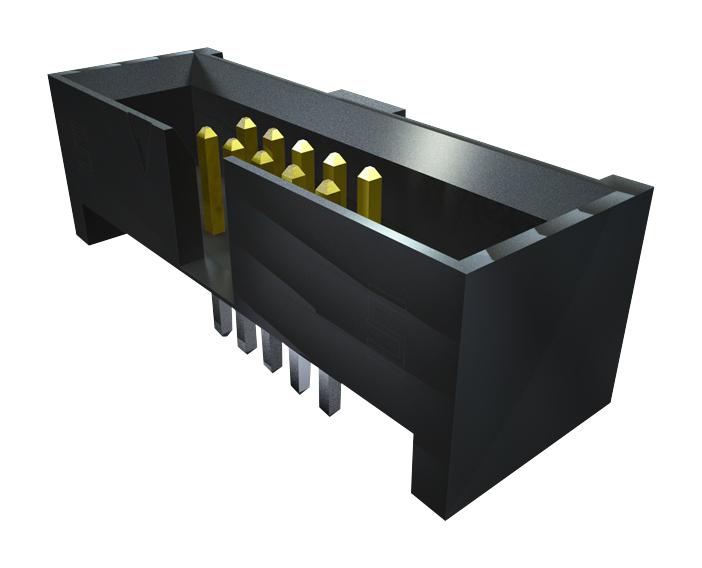

SAMTEC TMMH11701LDES through-hole header
The flexible through-hole header offers a reliable connection solution with options for 2 to 6 rows on a 2.00 mm pitch. Made from black liquid crystal polymer insulator and phosphor bronze terminals, it features high-mating tin or gold plating over nickel for corrosion resistance and durability. The contact type is through-hole, with a current rating of up to 5.1 A per pin, operating from -55°C to +125°C depending on plating. Suitable for industrial applications, it includes shrouded and right-angle options, RoHS compliance, and is lead-free and solderable, ensuring versatile and robust connectivity for electronic modules.
SAMTEC TMMH11701LDES through-hole header Specifications:
- Insulator Material: Liquid Crystal Polymer, Black
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over Ni, 50 µ
- Voltage Rating: 281 VAC mated with SQW, 250 VAC mated with SQT
- Current Rating: 4.5 A per pin, up to 5.1 A per pin for TMMESQT
- Operating Temp Range: -55°C to +125°C (with Gold plating)
- Pitch: 2.00 mm
- Number of rows: 2 to 6
- Connector Style: Through-hole with optional right-angle and shrouded configurations
- RoHS compliant: Yes
- Lead-Free: Yes
Buy the Samtec TMMH11701LDES – Reliable Through-Hole Header for Industrial Applications
Enhance your electronic assembly with this reliable through-hole header, designed for industrial applications requiring durable connections. Featuring a 2.00 mm pitch and options for 2 to 6 rows, it offers high current ratings up to 5.1 A per pin, making it suitable for power and signal connections. Made from black liquid crystal polymer insulator and phosphor bronze terminals with optional gold or tin plating, it ensures excellent performance and corrosion resistance. RoHS compliant and lead-free, this connector is easy to solder and suitable for a variety of demanding electronic systems, providing a versatile solution for your manufacturing needs.
Get Samtec TMMH11701LDES today—built for precision and long-lasting durability with versatile mounting options and high current capacity.
Frequently Asked Questions
Where can I buy SAMTEC TMMH11701LDES?
You can click on the BUY or RFQ button to purchase TMMH11701LDES from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMMH11701LDES?
You can download the TMMH11701LDES datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMMH11701LDES?
SAMTEC
