SAMTEC TMMH12201SDEP Flexible Header
This flexible through-hole header offers a reliable connection solution for industrial applications with options for shrouded and right-angle configurations. Constructed from black liquid crystal polymer insulators and phosphor bronze terminals, it features high-mating tin or gold plating, ensuring durability and corrosion resistance. Designed for perfboard and PCB mounting, it supports voltage ratings up to 281 VAC when mated with specific connectors, is RoHS compliant, lead-free, and suitable for operating temperatures from -55°C to +125°C. Available in various row counts with optional retention clips and shrouds, it provides versatile connection options for complex electronic assemblies.
SAMTEC TMMH12201SDEP Flexible Header Specifications:
- Material: Black Liquid Crystal Polymer insulator, Phosphor Bronze terminals
- Plating: Sn or Au over 50 µm Ni
- Current Rating: 4.5 A per pin, 5.1 A with two pins powered
- Voltage Rating: 281 VAC (mated with SQW), 250 VAC (mated with SQT)
- Operating Temperature Range: -55°C to +125°C (with Gold plating), -55°C to +105°C (with Tin plating)
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Pitch: 2.00 mm (0.0787 inches)
- Number of Rows: 2 to 6 options with various configurations
- Mechanical Options: Right-angle, vertical, shrouded, with optional clip retention
- Design features: Insertion depths and mating options vary, with some non-standard lengths and styles
- Certifications: RoHS, compatible with customer-specific requirements upon approval
- Construction: Through-hole mounting, tear-away option available

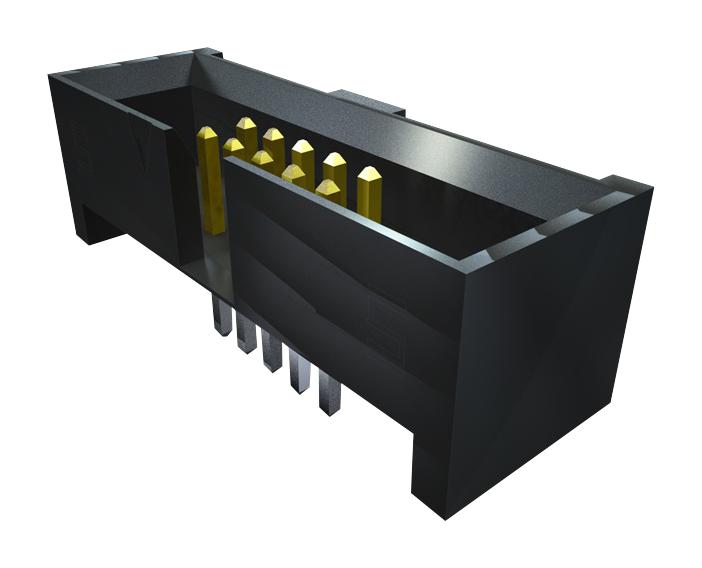

Buy the Samtec TMMH-125-04-F-D-EP – Reliable Flexible Through-Hole Header for Industrial Applications
Enhance your electronic projects by purchasing the flexible header online from Samtec. Designed for PCB and perfboard mounting, it offers high durability, RoHS compliance, and versatile configurations. Whether you need right-angle or vertical options, this high-quality component supports operating temperatures up to 125°C and features high-mating tin or gold plating for corrosion resistance. With various options to meet your specific needs, buying online ensures fast delivery, competitive prices, and reliable performance for all your industrial and automation needs.
Get Samtec TMMH-125-04-F-D-EP today—built for precision and long-lasting durability in complex electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC TMMH12201SDEP?
You can click on the BUY or RFQ button to purchase TMMH12201SDEP from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TMMH12201SDEP?
You can download the TMMH12201SDEP datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TMMH12201SDEP?
SAMTEC
