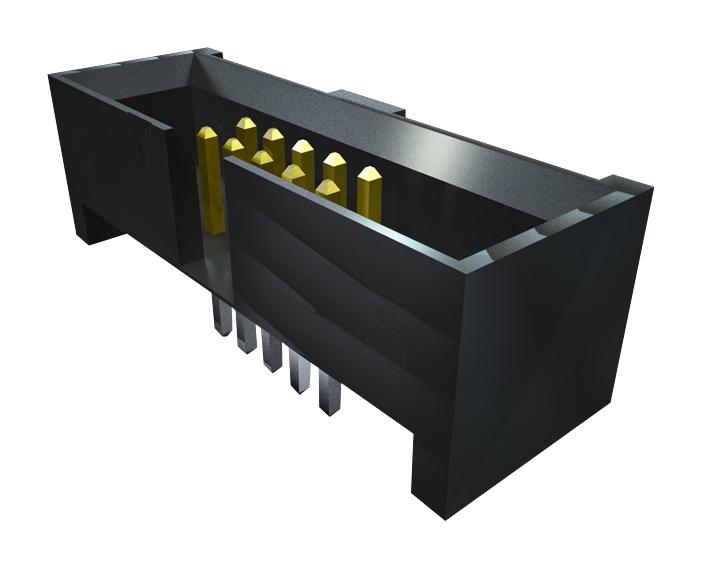

SAMTEC TMMH12501FDES Flexible Header
The flexible through-hole header is designed for reliable electrical connections in industrial and consumer electronics. Made from black liquid crystal polymer insulator with phosphor bronze contacts, it features high mating tin or gold plating over Ni. Suitable for a temperature range of -55°C to +125°C, it offers a voltage rating up to 250 VAC, RoHS compliance, and lead-free solderability. Available with optional right-angle or vertical configurations, the header ensures durable, high-current connections in space-constrained applications, supporting various pin counts and optional shrouded or non-shrouded designs.
SAMTEC TMMH12501FDES Flexible Header Specifications:
- Material: Black Liquid Crystal Polymer insulator, Phosphor Bronze contacts
- Plating: Sn or Au over Ni
- Temperature Range: -55°C to +125°C
- Voltage Rating: 250 VAC mated with SQT, 281 VAC with SQW
- Current Rating: 4.5 A per pin, 5.1 A with two pins powered
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Pin Spacing: 2.00 mm (0.0787 inch)
- Configuration: Multiple rows, optional shrouded, right-angle, vertical options
- Insulator Material: Liquid Crystal Polymer (LCP)
- Contact Material: Phosphor Bronze
- Tolerance & Finish: High mating tin or gold over nickel plating
- Design features include optional retention clips, tear tab, and custom configurations
Buy the Samtec TMMH12501FDES – Reliable Flexible Through-Hole Header for Industrial Applications
Order the flexible header online today to ensure reliable, high-quality electrical connections in your industrial electronics projects. This high-performance through-hole component offers robust mechanical and electrical durability, supporting various configurations and optional shrouded or right-angle options. Engineered from premium materials with excellent temperature and voltage ratings, it is RoHS compliant and lead-free, making it suitable for modern manufacturing standards. Trust Samtec for precise, dependable connectivity solutions—purchase now to meet your technical and quality requirements.
Get Samtec TMMH-125-01-F-D today—built for precision with high current capacity and space-efficient design.
