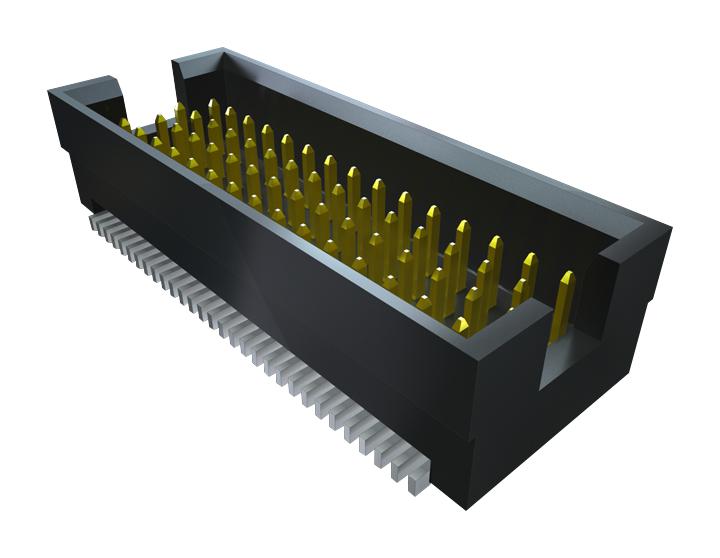

SAMTEC TOLC13022LQA Quad Row SMT Terminal
The TOLC-120-02-L-Q-LC is a quad row SMT terminal designed for industrial applications requiring reliable electrical connections. Made from phosphor bronze with gold over 50 micro-inch nickel plating, it features a black liquid crystal polymer insulator for durability and high-temperature performance. Rated for 2.4A per pin and operating from -55°C to +125°C, this RoHS-compliant terminal supports lead-free soldering and solderable processing. It is compatible as a drop-in replacement for FOLC/MOLC with SOLC, providing flexible options for high-density PCB connections in rugged environments.
SAMTEC TOLC13022LQA Quad Row SMT Terminal Specifications:
- Material: Phosphor bronze with gold over 50 micro-inch nickel plating
- Insulator Material: Black liquid crystal polymer
- Current Rating: 2.4 A per pin
- Operating Temp Range: -55°C to +125°C
- RoHS Compliant: Yes
- Processing: Lead-free solderable
- Surface Mount Coplanarity: 0,10 mm / 0.004 inch max
- Applicable Sizes: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 positions
- Plating: Gold over nickel
Buy the Samtec TOLC-120-02-L-Q-LC – Reliable SMT Terminal for Industrial Applications
Discover the durable and high-quality quad row SMT terminal designed for demanding industrial PCB applications. Made from phosphor bronze with gold-over-nickel plating, it ensures excellent electrical conductivity and corrosion resistance. Operating across -55°C to +125°C, rated for 2.4A per pin, and RoHS compliant, this terminal supports lead-free soldering and surface-mount technology for high-density, reliable connections. Ideal as a replacement for FOLC/MOLC in rugged environments, ensuring optimal performance and long service life.
Buy Samtec TOLC-120-02-L-Q-LC now and experience unmatched reliability and high-performance PCB connections in rugged industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC TOLC13022LQA?
You can click on the BUY or RFQ button to purchase TOLC13022LQA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TOLC13022LQA?
You can download the TOLC13022LQA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TOLC13022LQA?
SAMTEC
