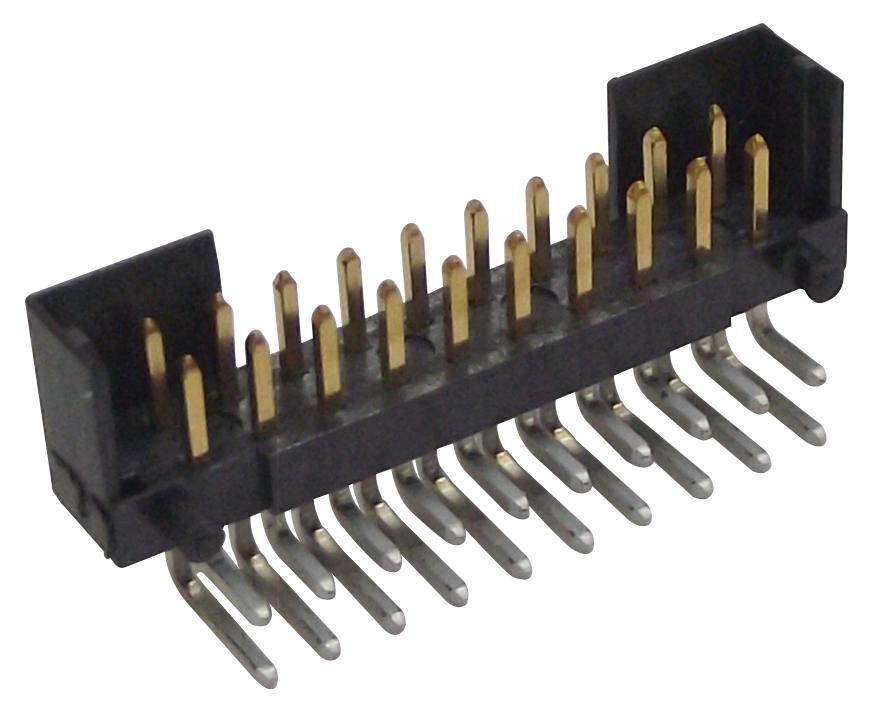

SAMTEC TSH11001FRA High-Density SMT Connector
This high-reliability connector features a black liquid crystal polymer insulator and phosphor bronze terminals, plated with tin or gold over nickel. Operating temperature ranges from -55°C to +105°C with tin plating, and up to +125°C with gold plating. It is RoHS compliant and suitable for high-precision, SMT applications including PCB connections. Designed for durability and tight coplanarity, it offers various pin counts from 5 to 45, with some styles and lengths non-standard or non-returnable, ensuring dependable performance in demanding electronic assemblies.
SAMTEC TSH11001FRA High-Density SMT Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Terminal Material: Phosphor Bronze
- Plating: Sn or Au over 50 µ" (1.27 µm) Ni
- Operating Temp Range: -55°C to +105°C with Tin; -55°C to +125°C with Gold
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.006" (0.15 mm) max
- Number of Pins: 5, 10, 15, 20, 25, 30, 35, 40, 45
- Sizes and options: Some non-standard and non-returnable
- Dimensions: 2.00 mm pitch, multiple length options
- Designed for high-density PCB mounting and reliable electrical connection.
Buy the Buy Samtec TSH 110-01-F-RD Online
Purchase the high-density SMT connector online today to ensure your electronic projects benefit from premium quality, precise pin alignment, and robust signal integrity. With options for gold or tin plating, RoHS compliance, and multiple pin configurations, this connector guarantees optimal performance for demanding applications. Easy to install with lead-free solderability and excellent coplanarity, it is perfect for modern electronic manufacturing needs. Order now to secure fast delivery and technical support for your critical assemblies.
Buy Samtec TSH 110-01-F-RD now and experience unmatched reliability and performance in high-precision PCB connections.
Frequently Asked Questions
Where can I buy SAMTEC TSH11001FRA?
You can click on the BUY or RFQ button to purchase TSH11001FRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part TSH11001FRA?
You can download the TSH11001FRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of TSH11001FRA?
SAMTEC
