SAMTEC TST10504LDRA09 board-to-board headers
Shrouded .025 inch square post IDC headers are designed for reliable board-to-board connections with secure locking mechanisms, polarized options, and various plating choices. Made from insulative materials like filled polyester, these headers feature phosphor bronze contacts with gold or tin plating, ensuring excellent conductivity and durability. Suitable for applications requiring high current ratings up to 2 A and operating temperatures from -55°C to +125°C with gold plating. Their compact, standard sizes support easy installation and high-density board connection, ideal for industrial automation and electronic systems.
SAMTEC TST10504LDRA09 board-to-board headers Specifications:
- Insulator Material: Filled Polyester
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over Ni
- Operating Temp Range: -55°C to +125°C (Gold), -55°C to +105°C (Tin)
- Flammability Rating: UL 94V-O
- Withstanding Voltage: 1000 VRMS
- RoHS Compliant: Yes
- Current Rating: 2 A per Contact
- Contact Pitch: 0.025 inches
- Number of Pins: 5, 7, 8, 10, 12, 13, 15, 17, 20, 25, 32, 36
- Lead Plating Body: Gold or Tin
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.004 inches maximum
- Alignment Pins: Included for mechanical stability
- Series Options: TST, ZST, HTST

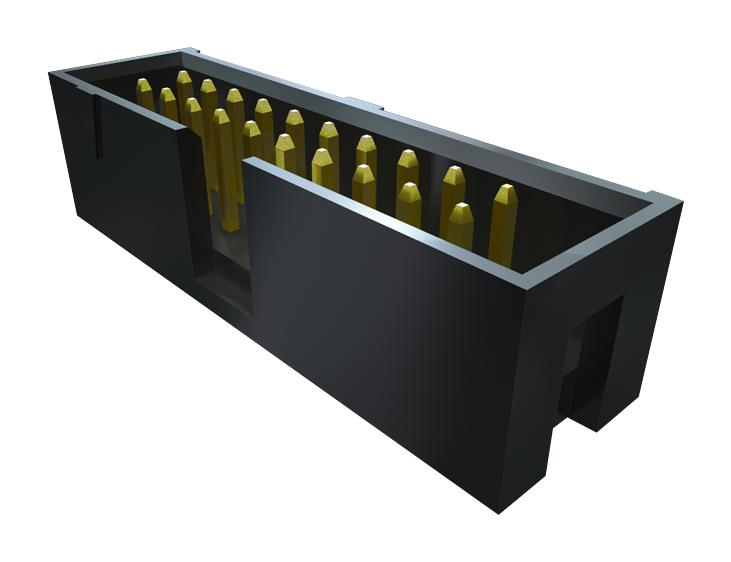

Buy the Buy Samtec Shrouded .025 Inch Square Post IDC Headers Part Number TST10504LDRA09 Online
Purchase the Samtec TST10504LDRA09 shrouded .025 inch square post IDC headers online today. These high-quality headers feature reliable locking mechanisms, polarization, and plated contacts with options for gold or tin finishes. Designed for rugged industrial use, with high temp ratings and high current capacity, they ensure long-lasting durability and easy installation. Fast and secure online ordering provides the ideal solution for electronic and automation systems needing compact, reliable board-to-board connections.
Get Samtec TST10504LDRA09 today—built for secure locking, high current capacity, and durable insulation for electronic connections.
