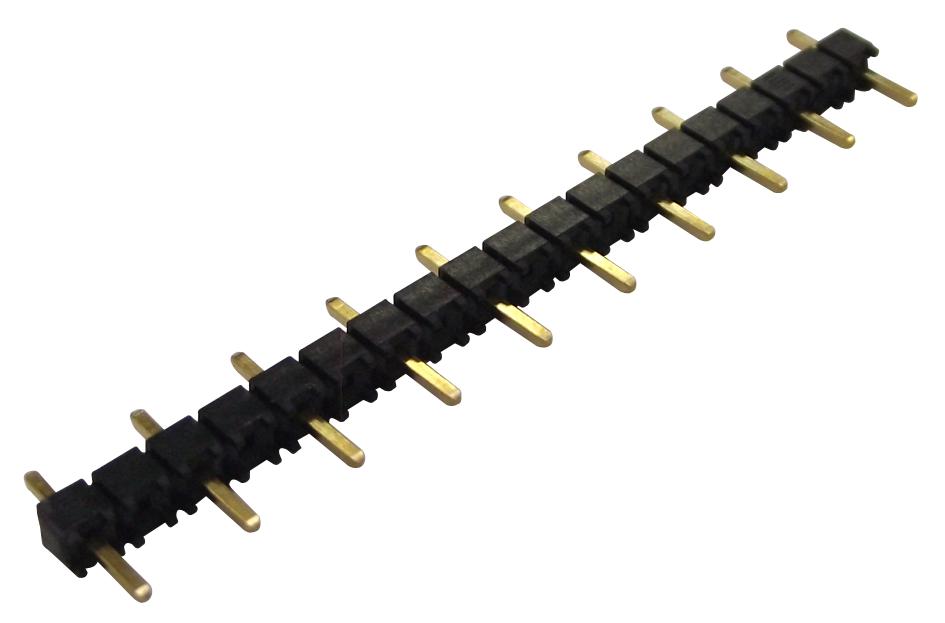

SAMTEC TSW20306TS Terminal Headers
The TSW series from Samtec are standard unshrouded through-hole terminal strip headers with 0.025 inch (0.635 mm) square posts. Designed to mate with various Samtec series connectors such as SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, and SMSS, these connectors feature diverse pin counts and configurations, including single and multiple rows. The pitch is 2.54 mm, with options for straight orientation. Operating within -55°C to 105°C, they have matte tin-plated phosphor bronze terminals, black glass-filled polyester insulators, and are UL and CSA compliant—ideal for industrial use.
SAMTEC TSW20306TS Terminal Headers Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Tin over 50 μ
- (1.27 μm) Ni
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Voltage Rating: 550 VAC with SSW, 500 VAC with BCS or ESQ, 450 VAC with BCS or SSM, 400 VAC with CES
- Lead-Free Solderable: Yes (HTSW: Yes, TSW: No, Lead Wave Only)
- Pin Centers: 2.54 mm (0.100 inch)
- Number of Positions: Varies, including 3, 4, 6, etc.
- Lengths and Styles: Multiple options including straight and right angle
- RoHS Compliant: Yes
- Certifications: UL Listed, CSA Certified
Buy the Samtec Series TSW Terminal Headers: TSW20306TS
Purchase the Samtec TSW20306TS terminal headers online to ensure high-quality, reliable connections for your industrial and electronics projects. These headers feature durable construction with black polyester insulators and phosphor bronze terminals, operating safely within -55°C to 105°C. Their 2.54 mm pitch and multiple configurations make them versatile for various applications. RoHS compliant and UL listed, these headers are easy to solder and install, offering excellent value and ensuring secure, long-lasting electrical connections in manufacturing, automation, and electronics assembly environments.
Get Samtec TSW20306TS today—robust terminal headers with reliable contact integrity suitable for industrial and electronics assembly.
