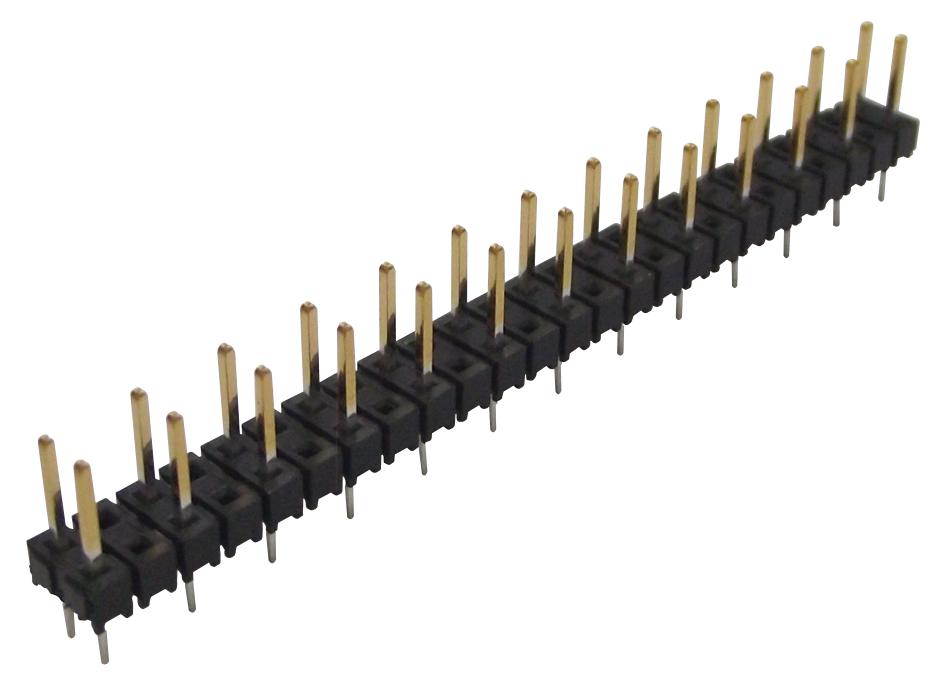

SAMTEC TSW20507LD Terminal Headers
The TSW series from Samtec includes unshrouded terminal strip headers designed for through-hole mounting with a 2.54mm pitch. Made with durable phosphor bronze contacts, gold-plated for longevity, and insulators of black glass-filled polyester, these connectors support multiple configurations, including single, dual, and triple rows with various pin counts and terminal lengths. Compatible with series such as SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, and SMSS, they ensure signal integrity in industrial applications, with optional locking features and compliance with UL and CSA standards.
SAMTEC TSW20507LD Terminal Headers Specifications:
- Pitch: 2.54 mm (0.100 inch)
- Contact Material: Phosphor Bronze
- Plating: Gold over 50 μin (1.27 μm) Nickel
- Insulator Material: Black Glass Filled Polyester
- Operating Temperature Range: -55 °C to +125 °C with Gold, -55 °C to +105 °C with Tin
- Voltage Rating: 550 VAC mated with SSW; 500 VAC with BCS/ESQ; 450 VAC with BCS/SSM; 400 VAC with CES
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes for HTSW series
- Current Rating per Pin: 5.2 A to 6.3 A depending on model
- Series Options: TSW, HTSW
- Pin Centering: 2.54 mm (0.100 inch)
- Configurations: Single, dual, triple rows, various pin counts
- Mechanical Features: Optional lock clips, shunt options, elevated right angle variants
- Certifications: UL Listed, CSA Certified
Buy the Samtec Series TSW20507LD Terminal Headers: 2.54mm Pitch, Gold-Plated Contacts
Purchase Samtec TSW20507LD terminal headers online today to ensure high-quality connections for industrial automation, instrumentation, and signal integrity applications. These reliable, gold-plated, through-hole connectors support various configurations, feature durable insulators, and are RoHS compliant. Designed for ease of assembly, they accommodate a wide range of voltages and currents, making them ideal for demanding environments. Build your project with trusted industrial connectivity parts—order now for prompt delivery and seamless installation.
Get Samtec TSW20507LD today—built for reliable signal transmission in industrial and automation systems.
