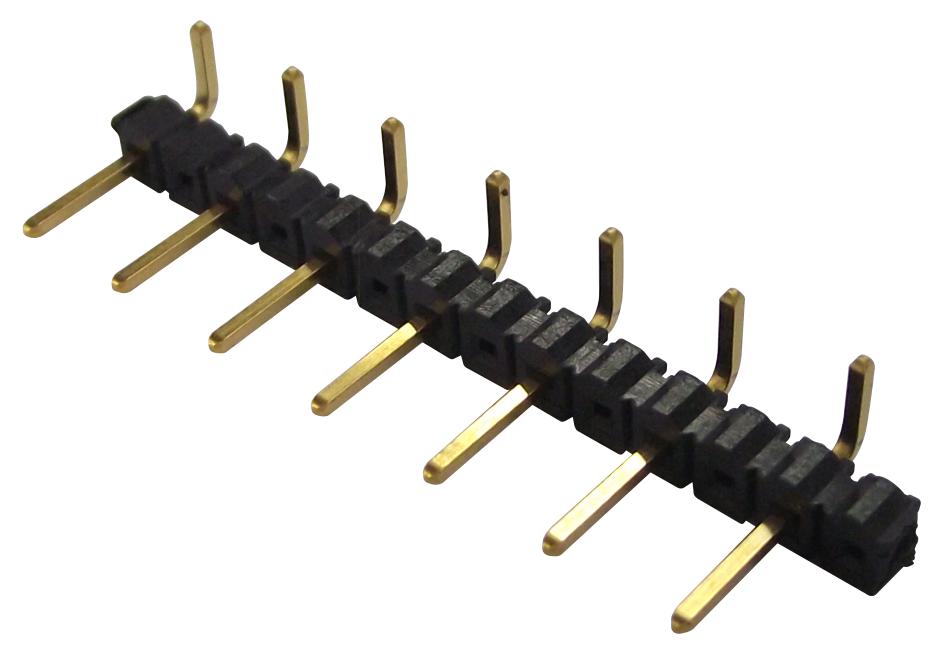

SAMTEC TSW21209GSRA Terminal Header
The TSW series from Samtec features reliable standard terminal strip headers with 0.025 inch (0.635mm) square posts, compatible with multiple Samtec connector series. These unshrouded through-hole headers are available in single, dual, or triple-row configurations, offering pitch spacing of 5.08mm (0.2 inches) and right-angle mounting options. Constructed with phosphor bronze terminals and a black glass-filled polyester insulator, they operate from -55°C to 125°C. Gold-plated contacts ensure high signal integrity, and options include locking leads and clips, with UL and CSA certification for safety and compliance.
SAMTEC TSW21209GSRA Terminal Header Specifications:
- Insulator Material: Black Glass Filled Polyester
- Terminal Material: Phosphor Bronze
- Plating: Gold over 50 µ
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Voltage Rating: 550 VAC mated with SSW, 500 VAC with BCS or ESQ, 450 VAC with RAV-RE mated with BCS or SSM, 400 VAC with CES
- RoHS Compliance: Yes
- Lead-Free Solderable: HTSW Yes, TSW No (Lead wave only)
- Pin Centers: 2.54 mm (0.100 inch), 5.08 mm (0.200 inch), 6.08 mm (0.239 inch)
- Current Rating: Up to 5.2 A per pin, depending on configuration and plating
- Certifications: UL Listed, CSA Certified
- Temperature Range: -55°C to +125°C (Gold plating), -55°C to +105°C (Tin plating)
- Mounting Style: Right angle and straight options available
- Connector Series Compatibility: SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD, SMSS
- Max Number of Positions: Varies, up to 22 positions per row as per models
- Other options: Locking leads, clips, shunts, various plating and style options
- Style Options: Single, double, or triple rows; various lead configurations; elevated right angle options
