SAMTEC ZF5S3001TWT Wedge Socket Connector
The Samtec ZF5S series wedge socket contacts are designed for reliable solderless quick connect/disconnect applications, suitable for PCB mounting with natural LCP insulator, phosphor bronze contacts, and tin over nickel plating. These contacts support operating temperatures from -55°C to +105°C and handle up to 1.8 A per pin, ensuring robust performance in demanding environments. Compatible with various sizes and configurations, they offer precise coplanarity for SMT assemblies and feature rugged welding tabs for secure board connection. Ideal for high-reliability electrical interconnections across diverse industrial applications.
SAMTEC ZF5S3001TWT Wedge Socket Connector Specifications:
- Insulator Material: Natural LCP
- Contact Material: Phosphor Bronze
- Plating: Sn over 50 p!m Ni
- Operating Temp Range: -55 °C to +105 °C
- Current Rating: 1.8 A per pin
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- SMT Lead Coplanarity: 0.10 mm max (10-30), 0.15 mm max (40-50)
- Weld Tab: Phosphor Bronze for rugged connection
- Size Options: Various, including 0.50 mm pitch and multiple positions
- Compatibility: Mates with FH series connectors
- Certification: RoHS compliant

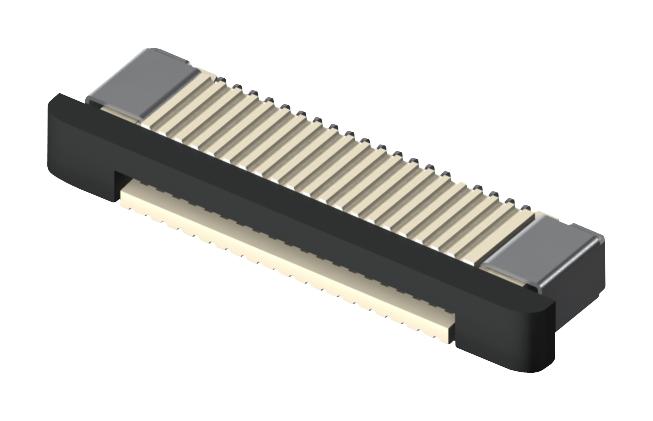

Buy the Samtec Series ZF5S Wedge Socket: ZF5S-20-01-T-WT
Purchase the Samtec wedge socket connector ZF5S-20-01-T-WT online today to ensure secure, high-quality PCB connections. This robust connector features a natural LCP insulator, phosphor bronze contacts with tin over nickel plating, and rugged weld tabs for dependable mechanical stability. Operating efficiently within -55°C to +105°C, it supports up to 1.8 A per pin, ideal for demanding industrial and electronic applications. Quick and easy to install, this connector guarantees durability and superior electrical performance for your projects.
Buy Samtec ZF5S-20-01-T-WT now and experience unmatched reliability and high-current PCB connection performance.
Frequently Asked Questions
Where can I buy SAMTEC ZF5S3001TWT?
You can click on the BUY or RFQ button to purchase ZF5S3001TWT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part ZF5S3001TWT?
You can download the ZF5S3001TWT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of ZF5S3001TWT?
SAMTEC
