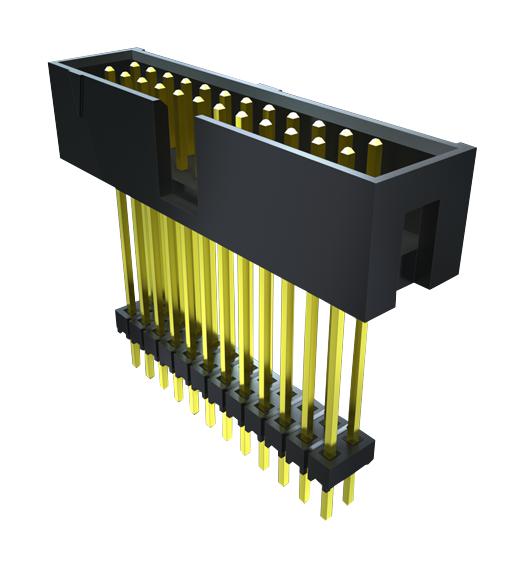

SAMTEC ZST12004SD815 Shrouded Board Connector
The ZST series shrouded vertical board-to-board connectors feature .025-inch square post IDC heads with a high current rating of up to 5A per contact. Made from durable materials such as phosphor bronze with gold or tin plating, they are RoHS compliant and suitable for various applications needing reliable electrical connections. The connectors support operating temperatures from -55°C to +125°C with gold plating, and -55°C to +105°C with tin. They are designed for wave soldering, with coplanarity tolerances suitable for SMT assembly, ensuring robust mechanical and electrical performance in demanding environments.
SAMTEC ZST12004SD815 Shrouded Board Connector Specifications:
- Insulator Material: Filled Polyester
- Insulation Resistance: Not specified
- Terminal Material: Phosphor Bronze
- Plating: Au or Sn over Ni (0.38 mm gold or 6.08 mm tin)
- Current Rating: Up to 5A per contact
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Flammability Rating: UL 94V-0
- Withstanding Voltage: 1000 VRMS
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Size Options: 05, 07, 08, 10, 12, 13, 15, 17, 20, 25, 32, 36
- Dimensions: 2.54 mm pitch, with connector lengths based on number of positions
- Installation: Suitable for SMT with coplanarity ±0.10 mm to ±0.15 mm
- Additional Features: Polarized, lockable, with optional alignment pins
