SAMTEC ZST12005TD515 board-to-board headers
The ZST12005TD515 shrouded .025 inch square post IDC headers are high-quality connectors designed for reliable board-to-board connections. Made from insulator materials like filled polyester with options for gold or tin plating over phosphor bronze contacts, these headers guarantee excellent electrical performance. They feature UL 94V-0 flammability rating, insulation resistance, and operate within -55°C to +125°C temperature range. Suitable for applications requiring RoHS compliance, these headers support wave soldering, have high current ratings, and provide mechanical stability with polarization and locking features, making them ideal for various electronic and industrial uses.
SAMTEC ZST12005TD515 board-to-board headers Specifications:
- Insulator Material: Filled Polyester
- Plating: Au or Sn over Ni (2.54 mm) .100 x No. of Positions + (6.08 mm) 200
- Current Rating (IDSD/TST): 2 A
- Operating Temp Range: -55°C to +125°C with Gold, -55°C to +105°C with Tin
- Flammability Rating: UL 94V-0
- Withstanding Voltage: 1000 VRMS
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- TST, ZST Series Support Wave Soldering
- Contact Material: Phosphor Bronze
- Lead Plating: Gold or Tin over Nickel
- Dimensions: Various sizes ranging from 5 to 36 positions, standard sizes include 2.54 mm spacing
- Alignment Pins: Available for added mechanical stability
- Locking Leads: Optional for secure connection
- Coplanarity: SMT design, maximum 0.004 inches (0.10 mm) in coplanarity
Buy the Buy Samtec ZST12005TD515 Part Number ZST12005TD515 Online

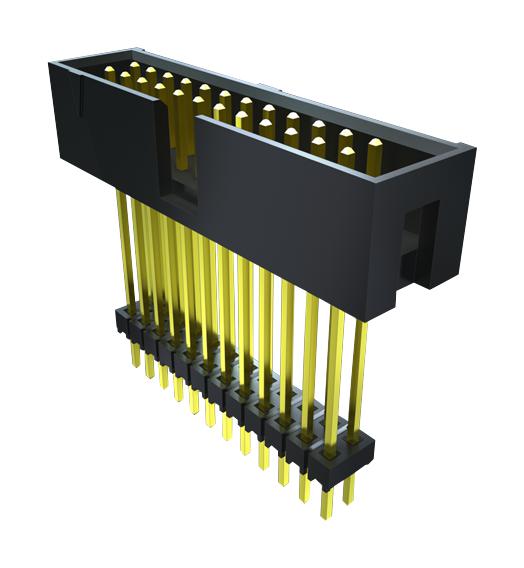

Upgrade your electronic assemblies with the Samtec ZST12005TD515 shrouded board-to-board headers. These connectors feature .025 inch square posts, high-quality phosphor bronze contacts with gold or tin plating, and a robust insulator made from filled polyester. They support RoHS compliance, operate within -55°C to +125°C, and are suitable for wave soldering and high-current applications. Designed for mechanical stability with polarization and optional locking features, these headers ensure dependable connections across a wide range of industrial and electronics projects. Order online today for fast delivery.
Order your Samtec Series ZST12005TD515 shrouded connector today and ensure reliable, stable electrical connections for your electronic projects.
