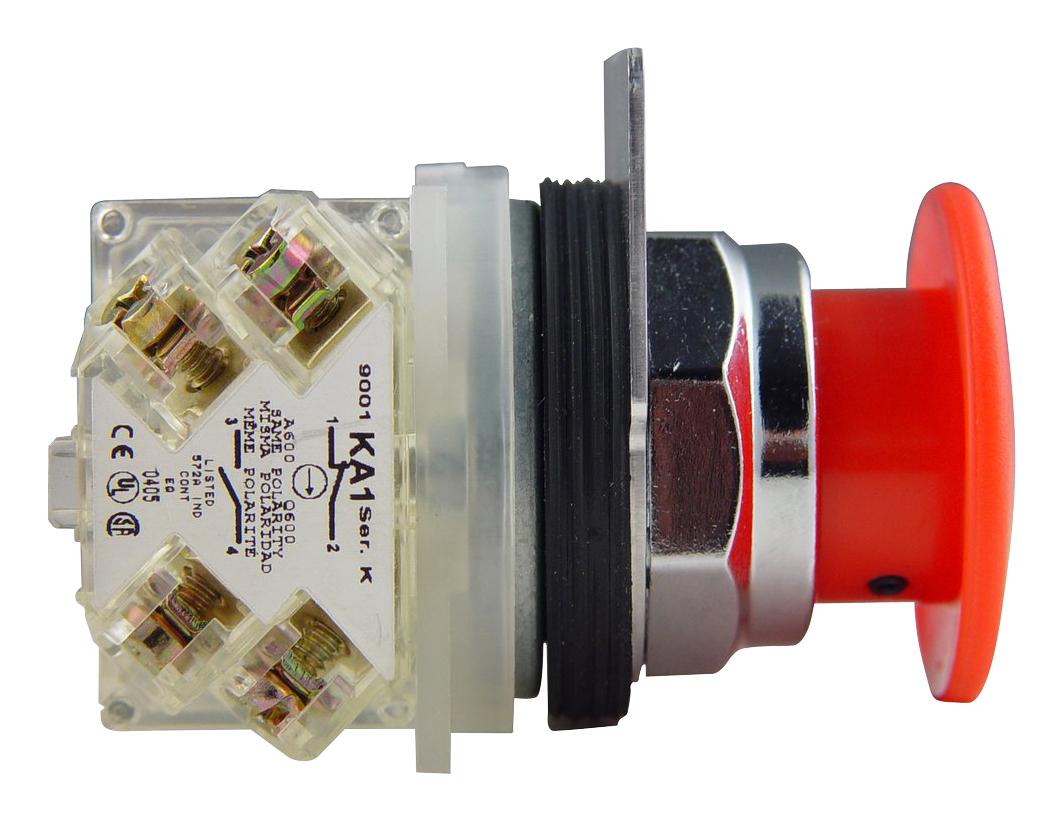

Schneider Electric 9001KR9R94H13 Mushroom Head Push-Button
The safety mushroom head push-button is designed for industrial control panels and machinery, featuring a robust plastic head with a chrome-plated metal bezel. It operates with a push-pull mechanism and has a round signaling head profile, suitable for any mounting position. The switch includes screw clamp terminals, silver alloy contacts, and is rated for 3A at 240V AC with a durability of 5 million cycles. Its IP66 protection rating ensures excellent environmental resistance, complying with various international standards like EN/IEC 60947-1 and UL 508.
Schneider Electric 9001KR9R94H13 Mushroom Head Push-Button Specifications:
- Mounting diameter: 30 mm (1.18 in)
- Overall width: 1.81 in (46 mm), height: 1.77 in (45 mm), depth: 2.91 in (74 mm)
- Head material: Plastic, Signaling head shape: Round, Bezel material: Chromium plated metal
- Operator profile: Red mushroom, unmarked, Screw-on plastic operator with 2 positions
- Contacts: 1c/0 with silver alloy, rated operational current 3A at 240V AC, 0.55A at 125V DC
- Electrical durability: 5 million cycles, Mechanical durability: 5 million cycles
- Connections: Screw clamp terminals, tightening torque 0.8 N·m
- Protection rating: IP66, NEMA 1, 12, 13, 2, 3, 3R, 4, 6
- Standards: EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14
- Vibration resistance: 7 gn, Shock resistance: 50 gn
- Ambient temperature: -25°C to +70°C, Storage: -40°C to +70°C
- Overvoltage category: Class II, Rated insulation voltage: 250 V
- Rated impulse withstand voltage: 2.5 kV, Short-circuit capacity: up to 60 KA at 120 V AC
Buy the Schneider Electric 9001KR9R94H13 – Reliable Mushroom Head Push-Button for Industrial Applications
Purchase the Schneider Electric mushroom head push-button online today—designed for durable, reliable operation in industrial control panels. With IP66 protection, it withstands harsh environmental conditions while supporting 5 million cycles. Its chrome-plated bezel and plastic round head provide a sleek, professional look, making it ideal for automation, machinery, and control systems. Easy to install with screw clamp terminals, rated for 3A at 240V AC, ensuring safety and high performance in demanding applications. Buy online now and ensure your operation runs smoothly.
Get Schneider Electric 9001KR9R94H13 today—built for precision and long-lasting durability in demanding industrial environments.
