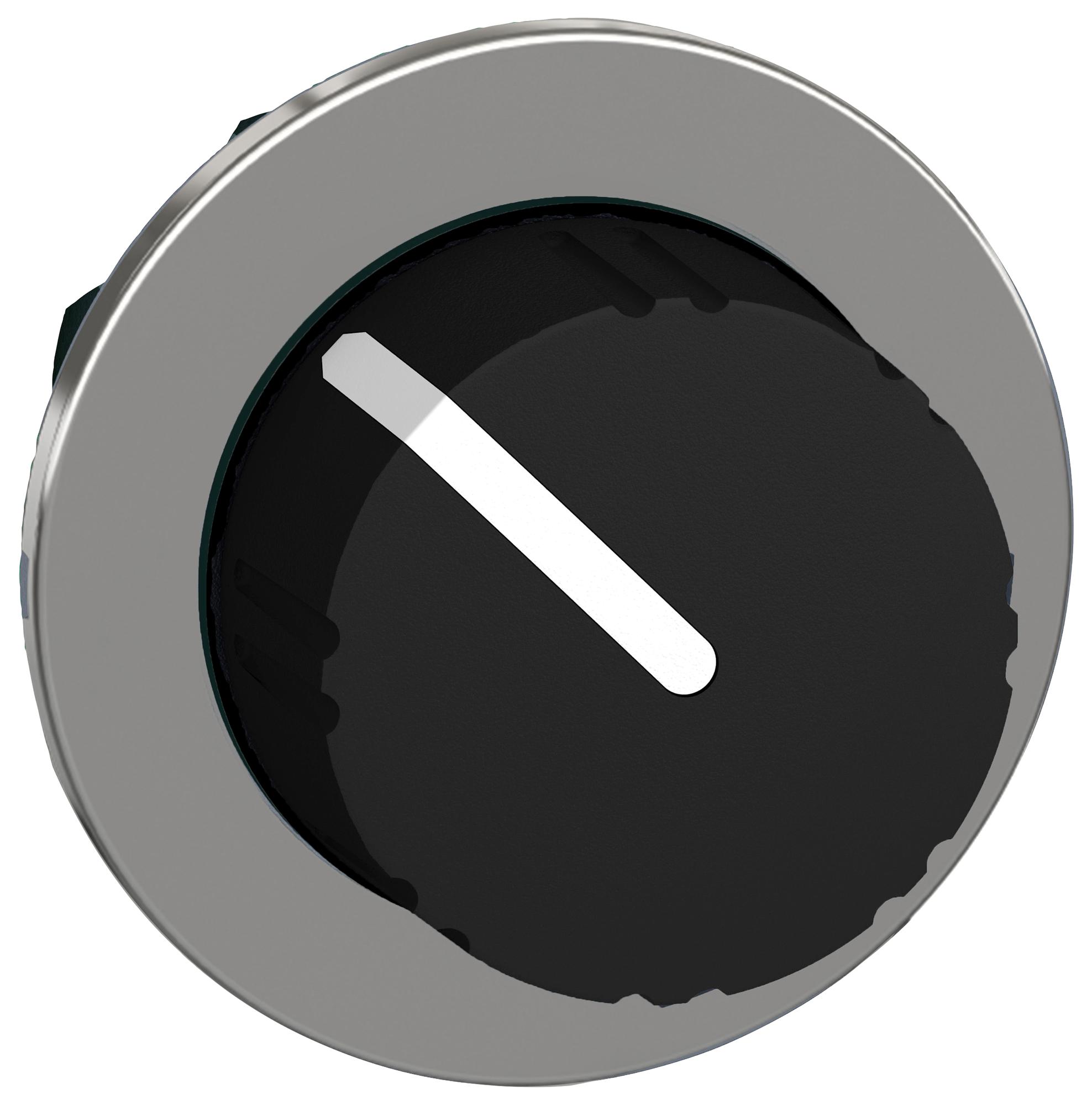

Schneider Electric ZB4FJ4 Selector Switch Head
The ZB4FJ4 is a built-in-flush type selector switch head with a black long handle, designed for added durability and user safety. Featuring a round shape and 2-position configuration with right-to-left spring return, this selector switch head fits 1.20-inch mounting diameters. It complies with IP66, IP67, and IP69 standards, making it suitable for harsh environments. Its robust chromium-plated metal bezel and high resistance to water pressure, shock, and vibration ensure reliable operation in industrial control systems. Ideal for applications requiring durable, high-performance selector switches with easy manual operation.
Schneider Electric ZB4FJ4 Selector Switch Head Specifications:
- Range of product: Harmony XB4
- Device type: Head for selector switch
- Shape of signaling unit: Round head
- Head type: Built-in-flush
- Color: Black long handle with chromium plated metal bezel
- Mounting diameter: 1.20 in (30.5 mm)
- Overall width: 1.44 in (36.6 mm)
- Overall height: 1.69 in (43 mm)
- Overall depth: 1.85 in (47 mm)
- Net weight: 0.17 Ib (0.078 kg)
- Resistance to high pressure washer: 7000000 Pa at 55°C, 0.1m distance
- Mechanical durability: 1,000,000 cycles
- Environmental protection: IP66, IP67, IP69, Type 13, Type 12, Type 4, Type 4X conforming to UL standards
- Protection level: IKO6 (IK degree)
- Operating and storage temperature: -40°F to 158°F (-40°C to 70°C)
- Standards: CSA C22.2 No 14, EN/IEC 60947-5-1, UL 508, JIS C8201-5-1, CE
- Certifications: UL Listed, CSA, ccc, EAC
- Vibration resistance: 5 gn, 10-500 Hz IEC 60068-2-6
- Shock resistance: 30 gn for 18 ms, 50 gn for 11 ms IEC 60068-2-27
Buy the Schneider Electric Series XB4 Selector Switch: ZB4FJ4
Enhance your control panels with the durable Schneider Electric Series XB4 ZB4FJ4 selector switch head. Designed for harsh environments, it features a robust chromium-plated metal bezel, IP66/IP67/IP69 ratings, and high resistance to water, shock, and vibration. Its 2-position round head with a long black handle ensures easy manual operation. With a mounting diameter of 1.20 inches and a mechanical lifespan of one million cycles, this switch head offers reliable performance for industrial automation and machinery. Buy online now for quality and durability.
Order your Schneider Electric Series XB4 ZB4FJ4 selector switch head today and guarantee high durability and reliable control in your industrial projects.
