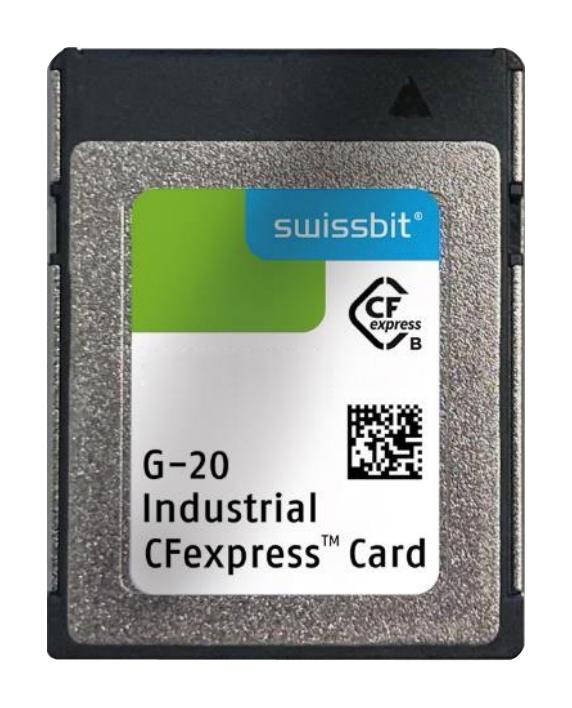

SWISSBIT SFCE240GW1EB4TOI6F111STD CFexpress Card

The Swissbit G-20 Series CFexpress Type B cards deliver high performance and reliability for industrial and automotive applications. With capacities up to 480GB, they support PCIe Gen3 x 2 lanes, NVMe 1.3, and offer sequential read speeds up to 1,615 MB/s and write speeds up to 827 MB/s. Designed for harsh environments, these cards operate from -40°C to 85°C, ensuring durability and data integrity. Features include data care management, wear leveling, power fail protection, and AES256 encryption. Optimized for long life cycles with high data retention and power safety, they perfect industrial automation, embedded computing, and IoT uses.

Buy Swissbit CFexpress Type B Part Number SFCE240GW1EB4TOI6F111STD Online
View SFCE240GW1EB4TOI6F111STDDatasheet [pdf]
Authorized Distributors
Source:Mouser Electronics
Part No:SFCE240GW1EB4TO-I-6F-111-STD
Stock:0
Inv Date:06-16-2026
Price: N/A
Buy/RFQ:

SWISSBIT SFCE240GW1EB4TOI6F111STD CFexpress Card Specifications:

  • Form Factor: CFexpress Type B (38.5mm x 29.6mm x 3.8mm)
  • Capacities: 15GB, 30GB, 60GB, 120GB, 240GB, 480GB
  • Interface: PCIe Gen3 x 2 Lanes
  • Compliance: CFexpress v2.00
  • Performance: Sequential Read up to 1,615 MB/s, Sequential Write up to 827 MB/s
  • Random Read 4K: Up to 115,000 IOPS, Random Write 4K: Up to 131,000 IOPS
  • Temperature Range (Operating and Storage): -40°C to 85°C
  • Voltage: 3.3V
  • MTBF: >2,000,000 hours
  • Data Retention: 10 Years at start, 1 Year at end of life
  • Features: Wear Leveling, Data Care Management, Power Fail Protection, AES256 Encryption (on request), E2E Data Protection
  • Power States: PSo, PS1, PS2, PS3, PS4
  • Support for Active and Passive Wear leveling, TRIM support, Firmware update capability
  • Certifications: RoHS, REACH, IPC-6012B Class 2 compliant

Buy the Buy Swissbit CFexpress Type B Part Number SFCE240GW1EB4TOI6F111STD Online

Get the Swissbit CFexpress Card with 480GB capacity online today. Designed for industrial, automotive, and embedded applications, it offers speeds up to 1,615 MB/s read and 827 MB/s write. Rugged for harsh environments with a temperature range of -40°C to 85°C, it provides durable data retention, wear leveling, power fail protection, and AES256 encryption. Perfect for automation, IoT, and professional workflows, this card ensures reliable operation and long lifespan, making it an essential component for demanding industrial projects.

Order your Swissbit G-20 series 480GB CFexpress Type B card today and enhance your industrial storage solutions with reliable high-speed performance.

Frequently Asked Questions

Where can I buy SWISSBIT SFCE240GW1EB4TOI6F111STD?

You can click on the BUY or RFQ button to purchase SFCE240GW1EB4TOI6F111STD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFCE240GW1EB4TOI6F111STD?

You can download the SFCE240GW1EB4TOI6F111STD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFCE240GW1EB4TOI6F111STD?

SWISSBIT
