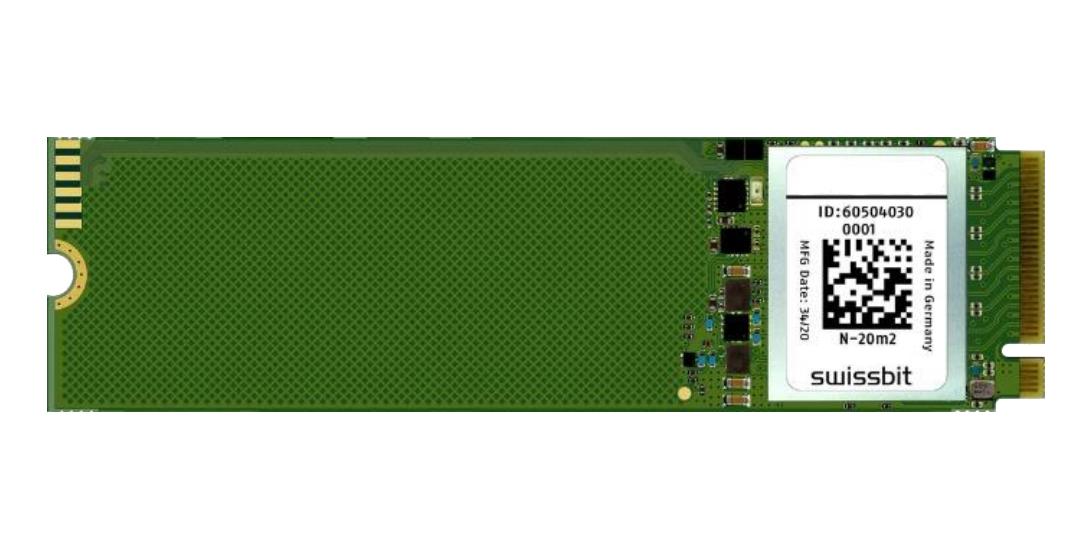

SWISSBIT SFPC120GM1EC4TOI5E516STD industrial NVMe SSD

The Swissbit N-20m2 SSD is a high-performance industrial M.2 PCIe NVMe drive available in capacities from 15 to 480 GBytes. It supports PCI Express Gen3 x2 and x4 interfaces, offers robust data integrity with ECC and end-to-end protection, and is optimized for demanding embedded computing environments. Compliant with NVMe 1.3 and JEDEC standards, it features low power consumption, extensive temperature ranges, and high endurance with up to 1,773 MB/s sequential read speed and 827 MB/s write speed. Ideal for industrial, enterprise, and embedded applications requiring reliable, fast storage solutions.

Swissbit SFPC120GM1EC4TO – Reliable NVMe for Industrial Applications
View SFPC120GM1EC4TOI5E516STDDatasheet [pdf]
Authorized Distributors
Source:DigiKey
Part No:SFPC120GM1EC4TO-I-5E-516-STD
Stock:4
Inv Date:06-15-2026
Price: Unit price: $527.39
Buy/RFQ:
Source:Mouser Electronics
Part No:SFPC120GM1EC4TO-I-5E-516-STD
Stock:0
Inv Date:06-16-2026
Price: N/A
Buy/RFQ:

SWISSBIT SFPC120GM1EC4TOI5E516STD industrial NVMe SSD Specifications:

  • Form Factor: M.2 (2230/2242/2280), 30/42/80 mm x 22 mm x 2.63 mm
  • Capacities: 15, 30, 60, 120, 240, 480 GBytes
  • Interface: PCIe Gen3 x2, x4, supports NVMe 1.3
  • Sequential Read Speed: up to 1,773 MB/s
  • Sequential Write Speed: up to 827 MB/s
  • Random Read 4K: up to 140,000 IOPS
  • Random Write 4K: up to 131,000 IOPS
  • Operating Temperature: -40°C to 85°C (industrial), 0°C to 70°C (commercial)
  • Storage Temperature: -40°C to 85°C
  • Supply Voltage: 3.3V, 1.8V, 0.9V
  • Endurance: up to 190 TBW (240GB)
  • MTBF: >2,000,000 hours
  • Dimensions: 30/42/80 mm length, 22 mm width, Max. 2.63 mm thickness
  • Compliance: PCIe 3.1, NVMe 1.3, JEDEC standards
  • Data Retention: 10 years at 40°C (initial), 1 year at end-of-life

Buy the Swissbit SFPC120GM1EC4TO – Reliable NVMe for Industrial Applications

Purchase the Swissbit NVMe SSD online today to ensure fast, reliable, and durable storage tailored for industrial and embedded applications. With capacities up to 480 GBytes, it offers exceptional sequential and random performance, extensive temperature support, and high endurance suitable for critical workloads. Designed with advanced ECC, end-to-end data protection, and wide operating temperature ranges, this SSD guarantees data integrity and longevity. Secure your high-performance storage solution now and enhance your system’s reliability and speed.

Get Swissbit SFPC120GM1EC4TO today—built for high performance and industrial-grade endurance in demanding environments.

Frequently Asked Questions

Where can I buy SWISSBIT SFPC120GM1EC4TOI5E516STD?

You can click on the BUY or RFQ button to purchase SFPC120GM1EC4TOI5E516STD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFPC120GM1EC4TOI5E516STD?

You can download the SFPC120GM1EC4TOI5E516STD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFPC120GM1EC4TOI5E516STD?

SWISSBIT
