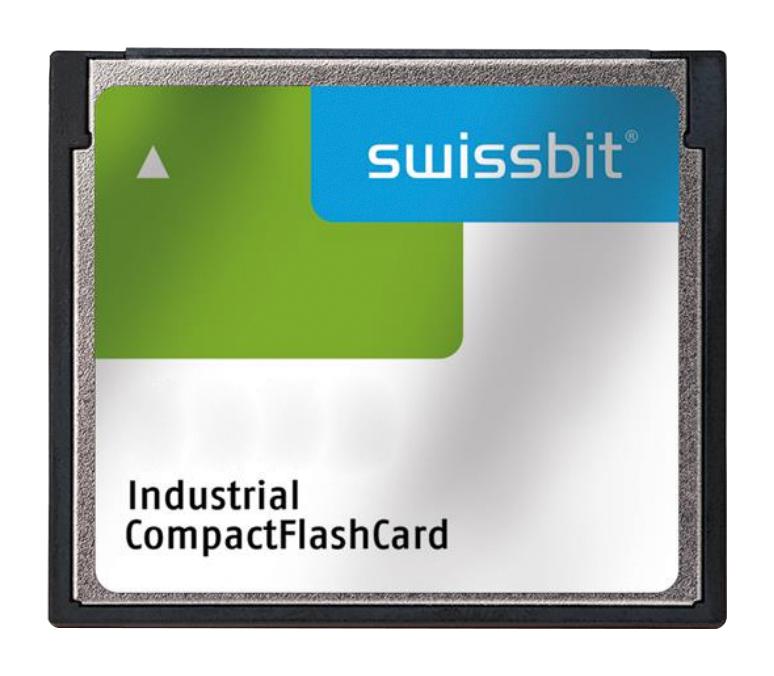

SWISSBIT SFCF008GH1AF2TOIMS527STD Industrial CompactFlash Card
The Swissbit C-500 is an industrial-grade CompactFlash memory card available in capacities up to 64GB. It features high-speed UDMA6 burst transfer rates up to 133MB/s, with sequential read/write speeds of up to 64MB/s and strong random performance. Designed for harsh environments, it supports operating temperatures from -40°C to 85°C, with 10-year data retention and excellent endurance. Equipped with advanced wear leveling, ECC, and SMART monitoring, it ensures reliable operation for industrial and NetCom applications, offering fast boot times and firmware update capabilities without data loss.
SWISSBIT SFCF008GH1AF2TOIMS527STD Industrial CompactFlash Card Specifications:
- Capacity: 64 GBytes
- Form Factor: CompactFlash Type I (36.4 mm x 42.8 mm x 3.3 mm)
- Interface: UDMA6, MDMA2, PIO6
- Sequential Read/Write: up to 64MB/s
- Random Read/Write: up to 2,880/1,330 IOPS
- Operating Temperature: -40°C to 85°C
- Storage Temperature: -50°C to 100°C
- Supply Voltage: 3.3V ±10% / 5V ±10%
- Current Consumption: Max 100mA active, 4.5mA idle
- Endurance: Over 409 TBW (Enterprise workload)
- MTBF: >3,000,000 hours
- Data Retention: 10 years
- Shock/Vibration: 1500 g / 20 g
- Compliance: CE, RoHS, WEEE, FCC, UL
- Dimensions: Length 36.4 mm, Width 42.8 mm, Thickness 3.3 mm
Buy the Buy Swissbit Industrial CompactFlash Part Number SFCF008GH1AF2TOIMS527STD Online
Order the Swissbit Industrial CompactFlash Card with part number SFCF008GH1AF2TOIMS527STD today to benefit from high-speed UDMA6 performance, extensive temperature range, superior endurance, and SMART monitoring for reliable industrial data storage. Perfect for rugged environments, it offers fast boot-up, firmware updates without data loss, and supports multiple command sets including CFA and ATA. Enhance your system's storage with this durable and high-performance memory card, available for quick online purchase.
Buy Swissbit SFCF008GH1AF2TOIMS527STD now and experience unmatched reliability and high-performance data storage for industrial applications.
Frequently Asked Questions
Where can I buy SWISSBIT SFCF008GH1AF2TOIMS527STD?
You can click on the BUY or RFQ button to purchase SFCF008GH1AF2TOIMS527STD from an authorized SWISSBIT distributor.
How do I troubleshoot issues or seek technical support for part SFCF008GH1AF2TOIMS527STD?
You can download the SFCF008GH1AF2TOIMS527STD datasheet or visit the SWISSBIT website for support.
Who is the manufacturer of SFCF008GH1AF2TOIMS527STD?
SWISSBIT
