SWISSBIT SFEM016GB1EA1TOIGE121STD Embedded Memory Module

The Swissbit embedded e-MMC is a reliable, industrial-grade memory device designed for high-performance data storage and boot applications. Compliant with JEDEC e-MMC 5.0 standards, it features MLC NAND technology, multiple configurable partitions, and a robust 153-ball BGA package. It supports various bus speed modes, including HS400 at up to 200MHz, with sequential read speeds reaching 250MB/s and write speeds up to 90MB/s. Designed for wide temperature ranges from -40°C to +85°C, it offers excellent endurance, power efficiency, and security features suitable for industrial and embedded systems.

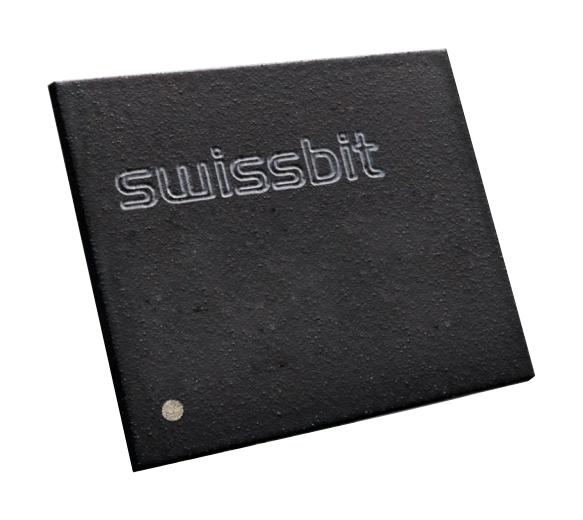

Swissbit Series Embedded MMC: 16GB Data Storage Module
View SFEM016GB1EA1TOIGE121STDDatasheet [pdf]
Authorized Distributors
Source:Mouser Electronics
Part No:SFEM016GB1EA1TO-I-GE-121-STD
Stock:0
Inv Date:06-16-2026
Price: N/A
Buy/RFQ:

SWISSBIT SFEM016GB1EA1TOIGE121STD Embedded Memory Module Specifications:

  • Capacity: 16GB
  • Memory Technology: MLC NAND
  • Form Factor: 153-ball BGA, 11.5 x 13.0 x 1.0 mm
  • Bus Modes: 1-bit, 4-bit, 8-bit
  • Bus Speed Modes: Backward compatible, HS200, HS400
  • Maximum Data Rate: Up to 250MB/s sequential read, 90MB/s sequential write
  • Operating Temperature: -40°C to +85°C
  • Power Supply: VCC 2.7V-3.6V, VCCQ 1.7V-1.95V or 2.7V-3.6V
  • Reflow Profile: Peak temperature 260°C, duration 60-150 sec
  • Dimensions: Length 1340.1 mm, Width 540.1 mm, Max Thickness 1.0 mm
  • Reliability: Data retention 10 years at 40°C, 1-year at end-of-life (3k PE cycles)
  • Advanced features: Wear leveling, power-fail data protection, security, multi-boot partitions

Buy the Swissbit Series Embedded MMC: 16GB Data Storage Module

Purchase the Swissbit embedded memory module online today and enjoy superior performance, wide temperature support, and secure data management suitable for industrial and embedded applications. This 16GB MLC NAND device offers high data transfer speeds with HS400 interface, ensuring efficient operation in demanding environments. Designed for long durability and reliability, it features power-fail protection, wear leveling, and multiple boot partitions. Upgrade your system with this compact, robust storage solution designed to meet industrial standards and extend device lifetime.

Buy Swissbit SFEM016GB1EA1TOIGE121STD now and experience unmatched reliability and high-speed performance in industrial environments.

Frequently Asked Questions

Where can I buy SWISSBIT SFEM016GB1EA1TOIGE121STD?

You can click on the BUY or RFQ button to purchase SFEM016GB1EA1TOIGE121STD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFEM016GB1EA1TOIGE121STD?

You can download the SFEM016GB1EA1TOIGE121STD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFEM016GB1EA1TOIGE121STD?

SWISSBIT
