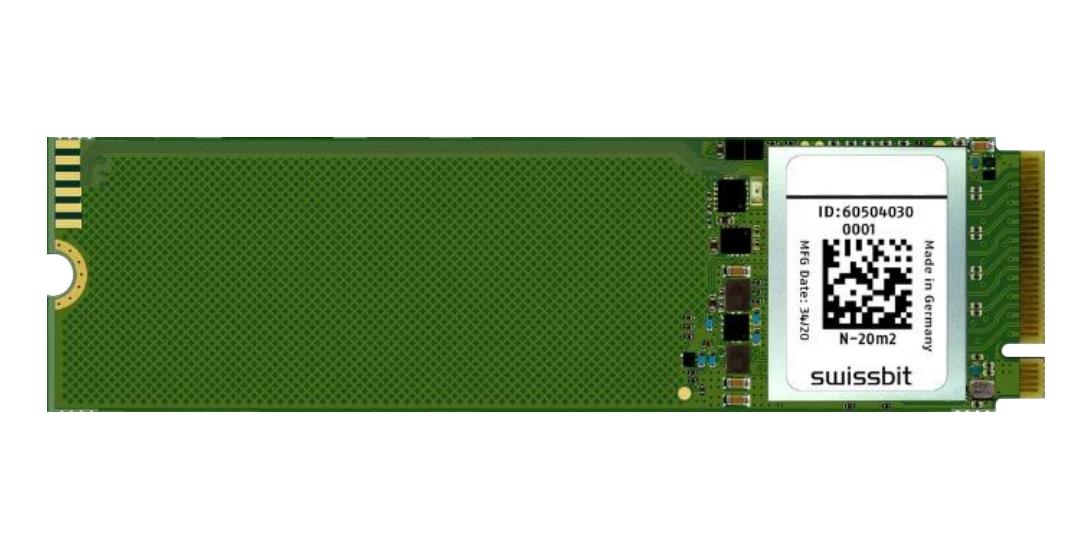

SWISSBIT SFPC030GM1EC1TOI5E516STD Industrial NVMe SSD

The Swissbit N-20m2 Solid State Drive (SSD) is an industrial-grade M.2 NVMe storage device with capacities up to 480GB. Designed for high-performance applications, it features PCIe Gen3 x2/x4 interface, advanced 3D NAND flash technology, and supports NVMe 1.3 standards. With robust data security including AES256 encryption and E2E data protection, the drive offers reliable performance in industrial environments. Its mechanical dimensions conform to M.2 standards, and it supports temperature ranges from -40°C to 85°C, ensuring durability in demanding conditions. Designed for embedded computing, it delivers high IOPS, low latency, and exceptional endurance, making it ideal for industrial, enterprise, and embedded applications.

Authorized Distributors
Part No:SFPC030GM1EC1TO-I-5E-516-STD
Stock:0
Inv Date:06-16-2026
Price: N/A
Buy/RFQ:

SWISSBIT SFPC030GM1EC1TOI5E516STD Industrial NVMe SSD Specifications:

  • Form Factor: M.2 (2230/2242/2280)
  • Capacities: 15GB, 30GB, 60GB, 120GB, 240GB, 480GB
  • Interface: PCIe Gen3 x2, x4 lanes supported
  • Protocol: NVMe 1.3
  • Sequential Read: Up to 1,773 MB/s
  • Sequential Write: Up to 827 MB/s
  • Random Read: 140,000 IOPS
  • Random Write: 131,000 IOPS
  • Operating Temperature: -40°C to 85°C
  • Storage Temperature: -40°C to 85°C
  • Voltage: 3.3V ± 5%
  • Endurance: up to 190 TBW (for 240GB)
  • MTBF: Over 2,000,000 hours
  • Dimensions: Length 30/42/80 mm, Width 22 mm, Thickness Max 2.63 mm
  • Weight: Less than 5.5 g (for 480GB)
  • Data Retention: 10 Years at 40°C

Buy the Swissbit SFPC030GM1EC1TO5E516STD – Reliable NVMe SSD for Industrial Applications

Order the Swissbit industrial NVMe SSD now to benefit from exceptional performance, robust data security like AES256 encryption, and durability in extreme temperatures. Designed for embedded systems and enterprise environments, this drive offers high IOPS, low latency, and long-term data retention. Its compact M.2 form factor and support for PCIe Gen3 ensure fast data transfer rates. Protect critical data with end-to-end data security features and enjoy reliable operation in demanding industrial and embedded applications. Purchase online today for quick delivery and quality assurance.

Buy Swissbit SFPC030GM1EC1TO5E516STD high-performance NVMe SSD online now and experience unmatched reliability and fast data transfer in rugged industrial environments.

Frequently Asked Questions

Where can I buy SWISSBIT SFPC030GM1EC1TOI5E516STD?

You can click on the BUY or RFQ button to purchase SFPC030GM1EC1TOI5E516STD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFPC030GM1EC1TOI5E516STD?

You can download the SFPC030GM1EC1TOI5E516STD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFPC030GM1EC1TOI5E516STD?

SWISSBIT
