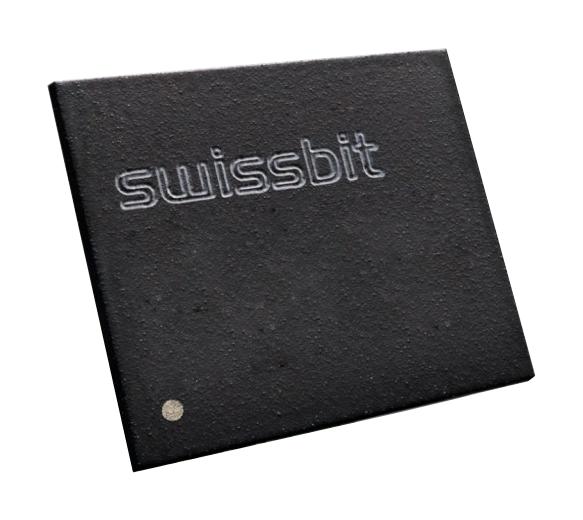

SWISSBIT SFEM064GB1EA1TOIHG121STD Embedded MMC Memory

The Swissbit 64GB embedded e-MMC memory is a high-reliability storage solution designed for industrial applications. Fully compliant with JEDEC e-MMC 5.0 standards, it features a 153-ball BGA package measuring 11.5 x 13.0 x 1.0mm. It leverages MLC NAND technology with configurable partitions, including boot, user, and RPMB areas, optimized for long-term data retention and power fail safety. Suitable for embedded systems, POS, medical, and gaming industries, it offers up to 250MB/s read and 90MB/s write speeds with features like wear leveling, firmware updates, and extensive environmental ratings.

Swissbit Series Embedded MMC: SFEM064GB1EA1TOIHG121STD
View SFEM064GB1EA1TOIHG121STDDatasheet [pdf]
Authorized Distributors
Source:Mouser Electronics
Part No:SFEM064GB1EA1TO-I-HG-121-STD
Stock:0
Inv Date:06-16-2026
Price: Unit price: $432.3
Buy/RFQ:

SWISSBIT SFEM064GB1EA1TOIHG121STD Embedded MMC Memory Specifications:

  • Physical Dimensions: Length 11.5mm, Width 13.0mm, Thickness 1.0mm
  • Memory Capacity: 64GB (62,545,461,248 Bytes)
  • Package: 153-ball BGA, RoHS compliant
  • Technology: MLC NAND flash with configurable reliable mode partitions
  • Interface: 11-wire bus including clock, Data Strobe, command, and data lines
  • Bus Width Modes: 1-bit, 4-bit, 8-bit, with high-speed mode HS400 at up to 200MHz
  • Sequential Read Speed: up to 250MB/s in reliable mode
  • Sequential Write Speed: up to 90MB/s in reliable mode
  • Power Supply: VCC 2.7V-3.6V for NAND, VCCQ 1.7V-1.95V for controller
  • Operating Temperature: -40°C to 85°C
  • Data Retention: 10 years at 40°C, 1 year at end of life (3k PE cycles)
  • Environmental: Reflow with peak temperature 260°C, MSL Level 3, EMI up to ±2kV (Human Body Model)

Buy the Swissbit Series Embedded MMC: SFEM064GB1EA1TOIHG121STD

Experience the high-performance and reliability of the Swissbit 64GB embedded MMC memory, specifically designed for industrial and embedded systems. With compliance to JEDEC e-MMC 5.0, configurable partitions, and a robust 153-ball BGA package, it guarantees long-term data retention and power fail safety. Suitable for mission-critical applications like POS, medical systems, and gaming devices, it provides sequential read speeds up to 250MB/s and write speeds up to 90MB/s, ensuring efficient performance under demanding conditions.

Order your Swissbit Series Embedded MMC 64GB memory today and ensure reliable long-term data storage for industrial environments.

Frequently Asked Questions

Where can I buy SWISSBIT SFEM064GB1EA1TOIHG121STD?

You can click on the BUY or RFQ button to purchase SFEM064GB1EA1TOIHG121STD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFEM064GB1EA1TOIHG121STD?

You can download the SFEM064GB1EA1TOIHG121STD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFEM064GB1EA1TOIHG121STD?

SWISSBIT
