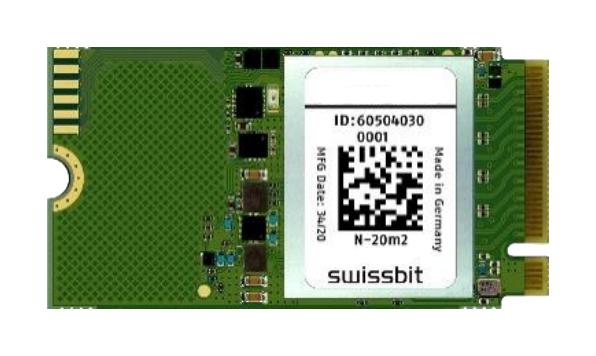

SWISSBIT SFPC060GM1EC2TOI5E116STD NVMe SSD
The Swissbit N-20m2 SSD offers high-performance NVMe storage with capacities from 15 to 480 GBytes. It supports PCIe Gen3 x2, x4 interfaces, and features robust 3D NAND flash, AES encryption, E2E data protection, and SMART monitoring. Designed for industrial and embedded applications, it operates within -40°C to 85°C, ensuring reliable data transfer and endurance. The SSD employs advanced wear leveling, power fail protection, and firmware update capabilities, making it ideal for demanding data center, industrial, and high-speed computing environments, ensuring durability and data integrity.
SWISSBIT SFPC060GM1EC2TOI5E116STD NVMe SSD Specifications:
- Form Factor: M.2 2230/2242/2280, 30/42/80 mm x 22 mm x 2.63 mm
- Capacities: 15 GBytes, 30 GBytes, 60 GBytes, 120 GBytes, 240 GBytes, 480 GBytes
- Interface: PCIe Gen3 x2, x4; Supports NVMe 1.3
- Sequential Read/Write: Up to 1773 MB/s read, 827 MB/s write
- Random Read/Write: Up to 140,000 IOPS read, 131,000 IOPS write
- Operating Temperature: -40°C to 85°C; Commercial: 0°C to 70°C
- Storage Temperature: -40°C to 85°C
- Power Supply: 3.3V ± 45%, 1.8V, 0.9V
- MTBF: Over 2,000,000 hours
- Endurance: Up to 190 TBW for 240 GB capacity
- Dimensions: 30/42/80 mm length, 22 mm width, Max thickness 2.63 mm
- Mechanical: Rugged with shock resistance up to 1500g, vibration tolerance 50g/80-2000Hz
- Regulatory Compliance: RoHS, REACh, WEEE, FCC EMC
- Features: Wear leveling, power fail data protection, end-to-end data protection, firmware update support, AES256 encryption (on request)
Buy the Buy Swissbit SSD Part Number SFPC060GM1EC2TOI5E116STD Online
Purchase the Swissbit NVMe SSD SFPC060GM1EC2TOI5E116STD online today to ensure high-speed, reliable data transfer for industrial and embedded applications. Designed with advanced NAND technology, support for NVMe 1.3, and robust data protection features, this SSD provides excellent endurance, operating in temperatures from -40°C to 85°C. Its compact M.2 form factor supports PCIe Gen3 x2 and x4 interfaces, making it ideal for demanding high-performance environments. Easily upgrade your storage solution with Swissbit’s trusted quality and performance.
Buy Swissbit SFPC060GM1EC2TOI5E116STD now and experience unmatched durability, high-speed data transfer, and industrial-grade reliability.
