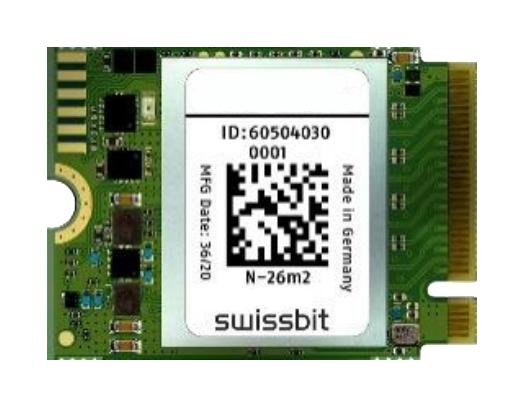

SWISSBIT SFPC005GM1EC1TOI5EA1PSTD industrial NVMe SSD

The Swissbit N-26m2 SSD is an industrial-grade NVMe M.2 solid state drive designed for high performance and reliability in embedded computing applications. It supports PCIe Gen3 x2/x4 interfaces, features robust 3D TLC NAND flash memory with LDPC ECC correction, and provides customizable thermal and power management options. Suitable for demanding environments, it offers sequential read speeds up to 1,773 MB/s, writes up to 827 MB/s, operating temperatures from -40°C to 85°C, and endurance exceeding 1550 TBW at 80GB capacity. Its compact form factor and advanced data protection ensure long-lasting, high-performance storage solution.

Swissbit SFPC005GM1EC1TO – Reliable NVMe for Industrial Applications
View SFPC005GM1EC1TOI5EA1PSTDDatasheet [pdf]
Authorized Distributors
Source:Mouser Electronics
Part No:SFPC005GM1EC1TO-I-5E-A1P-STD
Stock:0
Inv Date:06-16-2026
Price: N/A
Buy/RFQ:

SWISSBIT SFPC005GM1EC1TOI5EA1PSTD industrial NVMe SSD Specifications:

  • Form Factor: M.2 2230/2242/2280
  • Capacity options: 5 GBytes, 10 GBytes, 20 GBytes, 40 GBytes, 80 GBytes, 160 GBytes
  • Interface: PCIe Gen3 x2/x4, supports NVMe 1.3
  • Sequential Read Speed: up to 1,773 MB/s
  • Sequential Write Speed: up to 827 MB/s
  • Random Read/Write IOPS: up to 140,000/131,000 at 80GB
  • Operating Temperature Range: -40°C to 85°C
  • Storage Temperature: -40°C to 85°C
  • Power Supply: 3.3V, 1.8V, 0.9V
  • Endurance: >1550 TBW at 80GB capacity
  • MTBF: over 2,000,000 hours
  • Dimensions: Varies by form factor (30/42/80 mm x 22 mm x 2.63 mm)
  • Compliance: PCIe 3.1, NVMe 1.3, RoHS, WEEE, REACh
  • Physical: 75-pin edge connector with M key
  • Data Retention: 10 years at 40°C

Buy the Swissbit SFPC005GM1EC1TO – Reliable NVMe for Industrial Applications

Purchase the Swissbit SFPC005GM1EC1TO Industrial NVMe M.2 SSD online today. Engineered for high endurance and temperature resilience, it delivers rapid sequential read speeds up to 1,773 MB/s and robust write performance, making it ideal for demanding embedded applications. Its compact form factor fits easily into industrial systems, offering up to 160GB capacity, LDPC ECC protection, and a wide temperature range from -40°C to 85°C. Ensure reliable data integrity and longevity with this high-performance storage solution, available for convenient online ordering now.

Get Swissbit SFPC005GM1EC1TO today—built for industrial durability with high-speed NVMe performance and long-term reliability.

Frequently Asked Questions

Where can I buy SWISSBIT SFPC005GM1EC1TOI5EA1PSTD?

You can click on the BUY or RFQ button to purchase SFPC005GM1EC1TOI5EA1PSTD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFPC005GM1EC1TOI5EA1PSTD?

You can download the SFPC005GM1EC1TOI5EA1PSTD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFPC005GM1EC1TOI5EA1PSTD?

SWISSBIT
