SWISSBIT SFSA060GV2AK1TOI6B236STD Industrial SATA SSD

The Swissbit X-75s Series industrial SATA SSD offers capacities from 30 GB to 960 GB, leveraging Triple-Level Cell (TLC) 3D NAND flash technology and a high-performance SATA Gen3 controller. It supports advanced features including AES encryption, E2E data protection, power fail safety, and in-field firmware updates, making it ideal for embedded and industrial applications requiring high data transfer speeds up to 565 MB/s sequential read and 495 MB/s sequential write. Certified for industry standards, it operates reliably in temperatures from -40°C to 85°C with a MTBF exceeding 2 million hours, ensuring durability and data integrity.

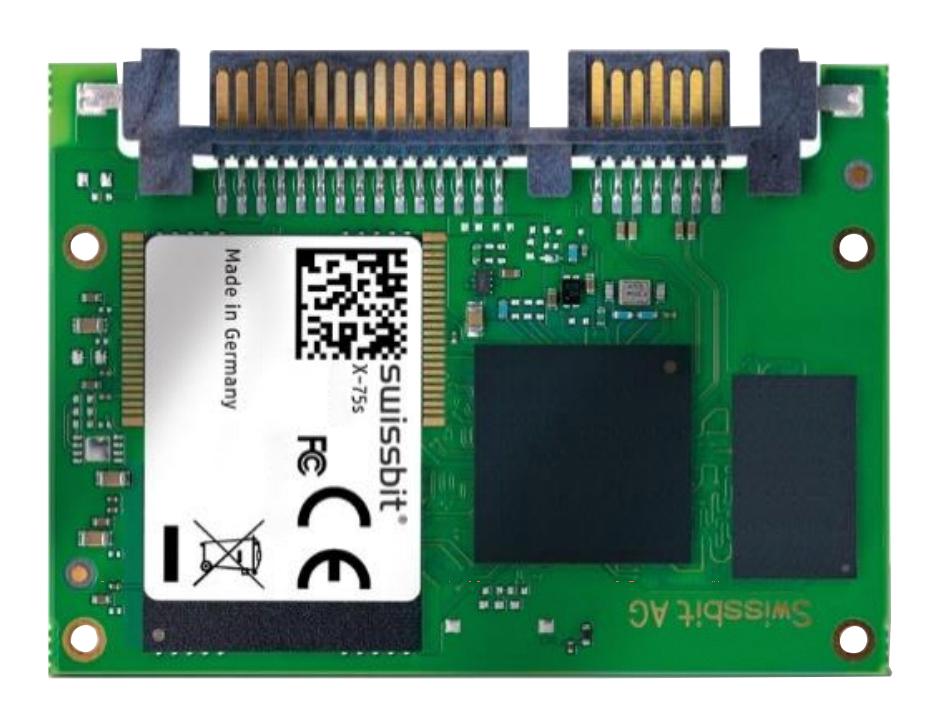

Swissbit Series X-75s SATA SSD: SFSA060GV2AK1TOI6B236STD
View SFSA060GV2AK1TOI6B236STDDatasheet [pdf]
Authorized Distributors
Source:Mouser Electronics
Part No:SFSA060GV2AK1TO-I-6B-236-STD
Stock:0
Inv Date:06-16-2026
Price: Unit price: $115.95
Buy/RFQ:

SWISSBIT SFSA060GV2AK1TOI6B236STD Industrial SATA SSD Specifications:

  • Capacity: 60 GBytes
  • Form Factor: JEDEC MO-297 Slim SATA SSD
  • Dimensions: 54 mm x 39 mm x 4 mm
  • Connector: 7-pin SATA data, 15-pin power
  • Interface: SATA Gen3 (6 Gbit/s), backward compatible with SATA Gen2 and Gen1
  • Sequential Read Performance: Up to 355 MB/s
  • Sequential Write Performance: Up to 145 MB/s
  • Random Read IOPS: 26,100
  • Random Write IOPS: 35,200
  • Operating Temperature Range: -40°C to 85°C
  • Power Supply: 5 V ±10%, 3.3 V available on request
  • Power Consumption: Active Read 385-525 mA, Write 370-560 mA, Idle 90-95 mW
  • MTBF: Over 2,000,000 hours
  • Data Retention: 10 years at 40°C
  • Endurance: Approx. 55.8 TBW for 60 GB capacity
  • Certifications: RoHS, WEEE, EMC, REACH

Buy the Swissbit Series X-75s SATA SSD: SFSA060GV2AK1TOI6B236STD

Purchase the Swissbit X-75s SATA SSD model SFSA060GV2AK1TOI6B236STD online today. Designed for industrial applications, it offers high-speed sequential read and write performance, extensive temperature tolerance from -40°C to 85°C, robust data protection features including AES encryption, and industry-standard form factor. Whether deploying in embedded or rugged environments, this drive ensures long-lasting durability, reliable data integrity, and easy firmware updates, making it an excellent choice for mission-critical storage needs in industrial automation and control systems.

Get Swissbit SFSA060GV2AK1TOI6B236STD today—built for high durability in industrial environments with reliable performance.

Frequently Asked Questions

Where can I buy SWISSBIT SFSA060GV2AK1TOI6B236STD?

You can click on the BUY or RFQ button to purchase SFSA060GV2AK1TOI6B236STD from an authorized SWISSBIT distributor.

How do I troubleshoot issues or seek technical support for part SFSA060GV2AK1TOI6B236STD?

You can download the SFSA060GV2AK1TOI6B236STD datasheet or visit the SWISSBIT website for support.

Who is the manufacturer of SFSA060GV2AK1TOI6B236STD?

SWISSBIT
